| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

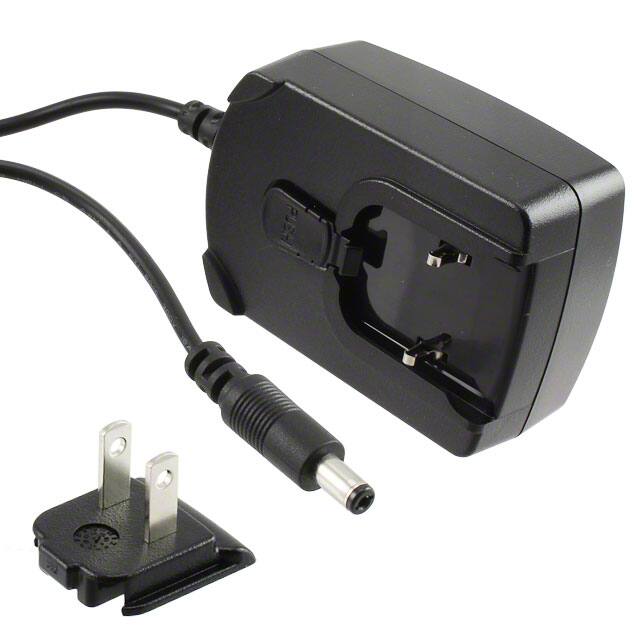

The Phihong USA PSC12R-050-RPA is an AC/DC wall mount adapter designed for ITE commercial applications. It delivers a stable 5V output with a power rating of 10W and a current of 2A.
This adapter meets Level V efficiency standards, ensuring energy savings. It operates within a temperature range of 0°C to 40°C and features a compact form factor with dimensions of 71.7mm x 45.0mm x 33.0mm. The input connector is a multi-blade type, and the output connector is a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization.
Designed for convenience, it includes a 47.2" (1.20m) cord and is suitable for North American regions. The adapter is RoHS3 compliant and has an MSL rating of 1.
The PSC12R-050-RPA adapter provides a 5VDC output voltage and a 2A current.
The power rating of the PSC12R-050-RPA is 10W.
The operating temperature range for the PSC12R-050-RPA is 0°C to 40°C.
The PSC12R-050-RPA uses a Barrel Plug with 2.1mm I.D. x 5.5mm O.D. x 9.5mm dimensions and positive center polarization.
The PSC12R-050-RPA is RoHS3 Compliant.
