| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

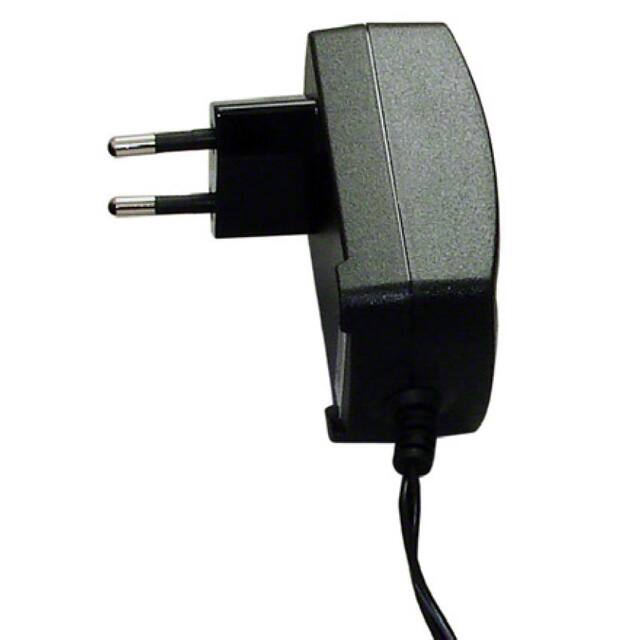

The Phihong USA PSC12E-050 is an AC/DC wall mount adapter delivering a 5V output with a maximum current of 2A, providing a total power of 10W. It is designed for ITE (Commercial) applications and meets Level V efficiency standards.
The adapter features a CEE 7/16 input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. Its dimensions are 71.7mm x 45.0mm x 30.5mm, making it suitable for space-constrained designs. The operating temperature range is from 0°C to 40°C.
This Class II wall mount adapter operates with a fixed blade input type and is utilized in Europe. It has a low no-load power consumption of 300mW maximum and comes with a 1.20m cord length. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level is 1.
The PSC12E-050 adapter has an output voltage of 5VDC and can supply up to 2A of current.
The Phihong USA PSC12E-050 adapter has a power rating of 10W.
The PSC12E-050 features a CEE 7/16 input connector.
The dimensions of the PSC12E-050 adapter are 71.7mm in length, 45.0mm in width, and 30.5mm in height.
The adapter operates within a temperature range of 0°C to 40°C.
The RoHS status for the PSC12E-050 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for this part is 1 Unlimited.
