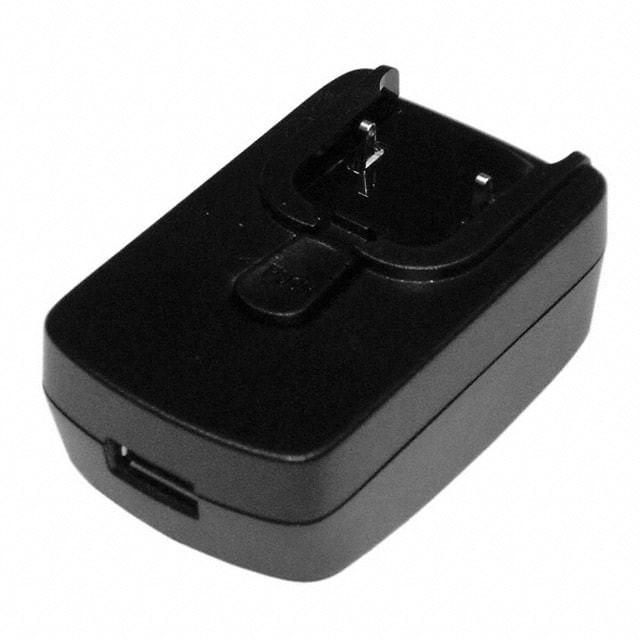

The Phihong USA PSC03R-050 is a compact 2.5W AC/DC wall mount adapter designed for various applications. It delivers a stable 5V DC output with a maximum current of 0.5A, suitable for powering peripherals and networking equipment.
This adapter features a USB Type A receptacle for output connectivity and accepts a wide AC input voltage range from 90 to 264V AC, making it suitable for international use. It meets Level IV efficiency requirements, ensuring reduced power consumption. The unit operates within a temperature range of 0 to +45°C.
Key specifications include a low leakage current, over-voltage protection up to 8V DC, and over-current protection up to 0.75A. The adapter is designed for permanent short-circuit protection without damage. Its mechanical dimensions are 75.32mm in length, 45.96mm in width, and 31.67mm in height, with a weight of 61.1g.
The PSC03R-050 adapter provides a 5V DC output voltage with a maximum current of 0.5A.
The Phihong PSC03R-050 adapter has a power rating of 2.5W.
The PSC03R-050 adapter uses a USB Type A receptacle for its output.
The operating temperature range for the PSC03R-050 adapter is 0°C to +45°C.
The PSC03R-050 adapter is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the PSC03R-050 is 1.
