| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Power Rating | |
| Rated Current | |
| Type | |
| Voltage | |
| Weight | |
| Width |

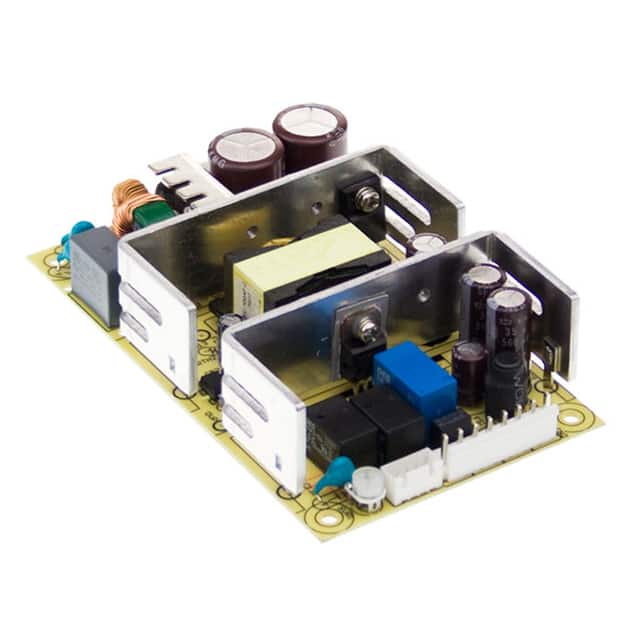

The Mean Well USA PSC-100B is an open-frame AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 101W with a voltage of 27.6V and a current of 1.25A. This converter features a universal AC input range of 90V~264V and an efficiency of 88%.
With a compact size of 127.0mm x 76.2mm x 31.0mm, it is suitable for chassis mounting. The operating temperature range is -20°C to 70°C with derating. Key features include adjustable output and universal input, along with protections for overload and over-voltage.
Safety standards include UL62368-1, TUV BS EN/EN, and it holds approvals from CB, CE, cURus, and TUV. The PSC-100B is designed for reliable performance in various commercial environments.
The output voltage is 27.6V.
The power rating is 100.74W.
The operating temperature range is -20°C to 70°C with derating.
The dimensions are 5.11 x 3.34 x 1.45 inches.
It complies with UL62368-1 and TUV BS EN/EN safety standards.
It uses chassis mount.
