| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Power Rating | |
| Rated Current | |
| Type | |
| Voltage | |
| Weight | |
| Width |

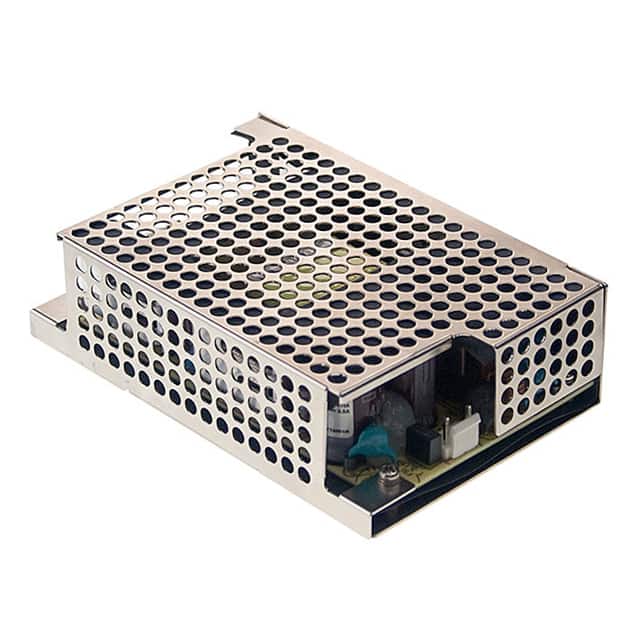

The Mean Well PSC-100A-C is an enclosed AC/DC power supply converter designed for ITE (Commercial) applications. It operates with a universal AC input range of 90V~264V and provides a stable output voltage of 13.8V.
This converter has a power rating of 100.05W and a rated current of 4.75A. Key electrical features include overload protection up to 150% of rated output power and over-voltage protection between 105% and 135% of rated output voltage. It also includes battery low protection and battery reverse polarity protection via fuse.
The unit is chassis mounted and measures 130.0mm x 85.0mm x 37.0mm (5.12" x 3.35" x 1.46"). Cooling is achieved through free convection. The operating temperature range is -20°C to 70°C with derating.
Safety standards include UL62368-1 and TUV BS EN/E, with approval agencies CB, CE, cURus, and TUV. The PSC-100A-C is RoHS3 Compliant and has an MSL of 1.
The output voltage is 13.8V.
The power rating is 100.05W.
The input voltage range is 90V~264V AC and 127V~370V DC.
The dimensions are 130.0mm x 85.0mm x 37.0mm (5.12" x 3.35" x 1.46").
The operating temperature range is -20°C to 70°C with derating.
It meets UL62368-1 and TUV BS EN/E safety standards.
Yes, it is RoHS3 Compliant.
