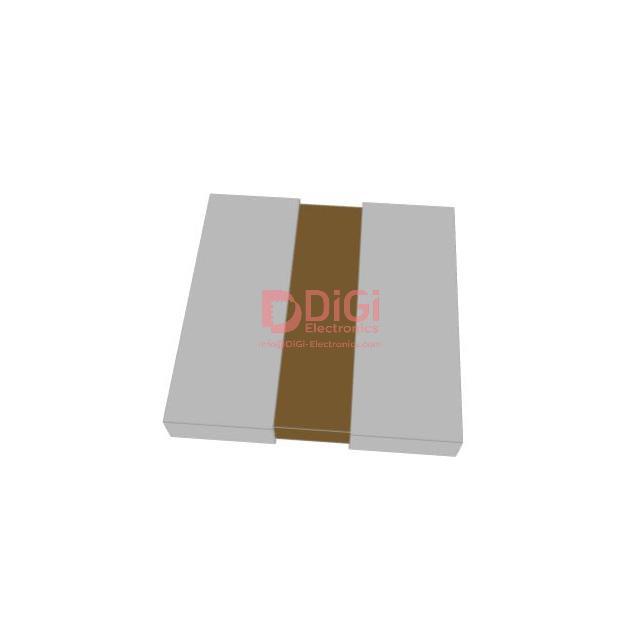

PSBTTEB1L00F The KOA Speer Electronics PSBTTEB1L00F is a surface mount chip resistor with 1 mOhm resistance and 1% tolerance. It features a 6W power rating and automotive qualification.
Mfr Part #:

PSBTTEB1L00F

Available from 1 distributors
Mfr Name: KOA Speer Electronics
KOA Speer Electronics
The KOA Speer Electronics PSBTTEB1L00F is a surface mount chip resistor with 1 mOhm resistance and 1% tolerance. It features a 6W power rating and automotive qualification.
✓ Total Stock: 1,005 pcs
$ Price Range: $0.02

PSBTTEB1L00F Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,005 pcs
On Request
1005 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PSBTTEB1L00F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

PSBTTEB1L00F Description

Short technical summary and product information.

The KOA Speer Electronics PSBTTEB1L00F is a nonstandard chip resistor designed for surface mount applications. It offers a low resistance value of 1 mOhm with a tight tolerance of ±1% and a power rating of 6W.



This resistor operates within a temperature range of -65°C to 155°C and has a temperature coefficient of ±75ppm/°C. Its composition is a metal element, making it suitable for current sense applications. The component is also moisture resistant and features automotive AEC-Q200 qualification.



With dimensions of 10.00mm in length and 8.40mm in width, and a height of 0.90mm, it is packaged in tape and reel. The PSBTTEB1L00F has 2 terminations and is classified as RoHS3 Compliant, MSL 1, and REACH Unaffected.

PSBTTEB1L00F Quick Information

Product Type: Chip Resistor - Surface Mount
Series: PSE
Canonical Name: KOA Speer Electronics PSBTTEB1L00F Chip Resistor - Surface Mount
Subcategory: Chip Resistor - Surface Mount

PSBTTEB1L00F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PSBTTEB1L00F Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

PSBTTEB1L00F Features

  • 1 mOhm resistance with 1% tolerance.
  • 6W power rating for demanding applications.
  • Automotive AEC-Q200 qualified.
  • Metal element composition for current sensing.
  • Moisture resistant and operates -65°C to 155°C.

PSBTTEB1L00F Applications

  • Suitable for automotive applications.
  • Ideal for current sense circuits.
  • Used in high power designs.
  • Surface mount assembly.

PSBTTEB1L00F FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the PSBTTEB1L00F?

The resistance value is 1 mOhm.

What is the tolerance of the PSBTTEB1L00F resistor?

The tolerance is ±1%.

What is the power rating of the PSBTTEB1L00F?

The power rating is 6W.

What is the operating temperature range for this resistor?

The operating temperature range is -65°C to 155°C.

What are the dimensions of the PSBTTEB1L00F chip resistor?

The dimensions are 10.00mm in length, 8.40mm in width, and 0.90mm in height.

Is the PSBTTEB1L00F suitable for automotive applications?

Yes, it features Automotive AEC-Q200 qualification.
