| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
860 pcs
|
860 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Dimming | |
| Efficiency | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Topology | |
| Type | |
| Voltage | |
| Width |

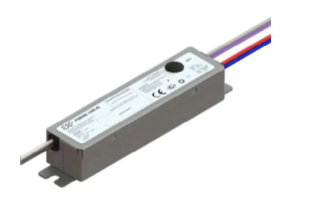

The ERP Power PSB30W-0700-34 is a constant current LED driver designed for commercial and residential lighting applications. It accepts a universal input voltage range of 120-277 VAC and delivers a programmable output current from 350 to 700 mA, with a maximum output voltage of 34 V, resulting in a typical output power of 23.8 W.
The driver supports Tri-Mode dimming (TRIAC, ELV, and 0-10V analog) with a 1% to 100% dimming range. It features high efficiency (>90% typical), a power factor above 0.9, and total harmonic distortion below 20%. Electrical protection includes 2 kV line-to-line and line-to-earth surge protection per IEC61000-4-5, plus 2.5 kV ring wave surge protection. The startup time is 300 ms.
Mechanically, the driver is housed in an IP20-rated module with wire leads for termination. Dimensions are 98.5 mm x 26.2 mm x 21.9 mm (3.88 in x 1.03 in x 0.86 in). The mounting type is chassis mount (inferred). The driver has a maximum case hot spot temperature of 90°C and a lifetime of 50,000 hours at Tc ≤75°C.
The driver is approved by CB, CE, cULus, and FCC agencies. Environmental compliance includes RoHS3 (unverified), REACH unaffected (unverified), and MSL level 1 (unverified). It is classified as Class 2 output and Class II power supply, suitable for indoor use.
| Qty | Low | High |
|---|---|---|
| 1+ | $21.68 | $21.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 120 to 277 VAC, also supporting 220-240 VAC.
The nominal output current is 700 mA, programmable from 350 to 700 mA. The maximum output voltage is 34 V.
The driver supports Triac, ELV, and Analog (0-10V) dimming with a 1% to 100% dimming range.
Typical efficiency is 90% and power factor is greater than 0.9.
Dimensions are 98.5 mm x 26.2 mm x 21.9 mm (3.88 in x 1.03 in x 0.86 in). Termination style is wire leads.
RoHS status is indicated as RoHS3 compliant, but documentation has not been verified.
