Mfr Part #:

PSAS5F2130051TR

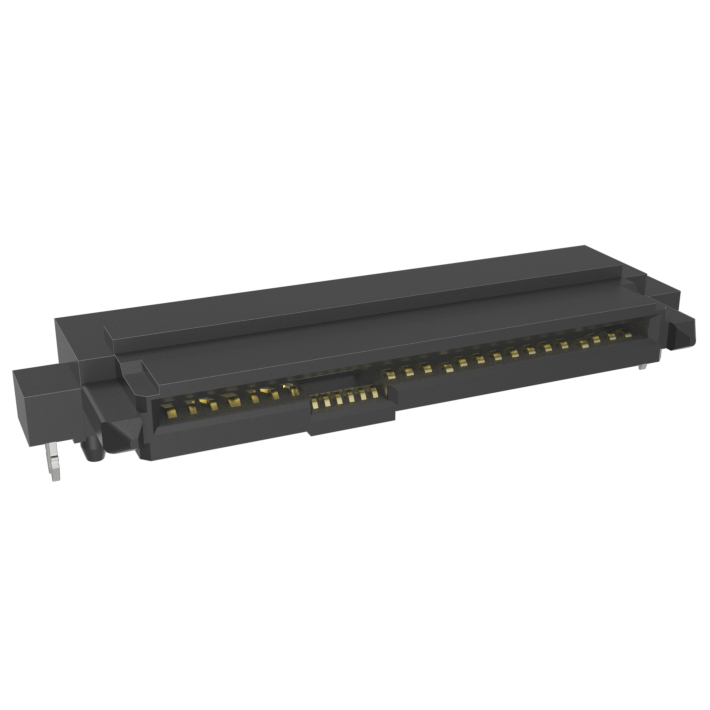

PSAS5F2130051TR is a SAS/PCIe 68-position receptacle connector by Amphenol ICC. It features surface mount, right angle mounting, gold contact finish, and includes board lock, mating guide, pick and place, and solder retention features.

✓ Total Stock: 5,500 pcs

$ Price Range: $14.63 - $20.45

PSAS5F2130051TR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	5,500 pcs On Request	5500 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

PSAS5F2130051TR Description

Short technical summary and product information.

The PSAS5F2130051TR is a SAS/PCIe 68-position receptacle connector manufactured by Amphenol ICC. This connector is designed for high-speed storage interface applications, providing reliable connectivity for SAS and PCIe protocols. Key specifications include a surface mount, right angle mounting style with solder termination. The contact finish is gold with a thickness of 30.0 microinches (0.76 micrometers), ensuring excellent conductivity and corrosion resistance. The connector incorporates several design features: a board lock for secure attachment to the PCB, a mating guide for proper alignment during connection, pick and place capability for automated assembly, and solder retention to enhance joint reliability. The component is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited). It is packaged in a surface mount, right angle configuration suitable for high-density PCB designs.

PSAS5F2130051TR Quick Information

Product Type: Pluggable Connector Assembly

Series: PSAS5

Canonical Name: Amphenol ICC PSAS5F2130051TR SAS/PCIe Receptacle Connector

Subcategory: Pluggable Connector Assemblies

PSAS5F2130051TR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PSAS5F2130051TR Estimated Pricing

Qty	Low	High
1+	$20.45	$20.45
10+	$17.69	$17.69
25+	$16.29	$16.29
50+	$15.51	$15.51
100+	$14.99	$14.99
250+	$14.63	$14.63
750+	$14.63	$14.63

Estimated market price range - modelled values for guidance only, not live distributor offers.

PSAS5F2130051TR Features

SAS/PCIe 68-position receptacle connector.
Surface mount, right angle mounting style.
Gold contact finish, 30.0µin thickness.
Board lock and mating guide included.
Pick and place and solder retention.

PSAS5F2130051TR Applications

Used in SAS/PCIe storage interfaces.
Suitable for high-speed data connectors.
Ideal for server backplane connections.

PSAS5F2130051TR FAQs

7 frequently asked questions generated from this part’s specifications.

What type of connector is the PSAS5F2130051TR?

SAS/PCIe receptacle.

How many positions does this connector have?

68 positions.

What is the mounting type?

Surface Mount, Right Angle.

What is the termination style?

Solder.

What is the contact finish and thickness?

Gold, 30.0µin (0.76µm).

What features are included on this connector?

Board Lock, Mating Guide, Pick and Place, Solder Retention.

What are the environmental compliance ratings?

RoHS3 Compliant, REACH Unaffected, MSL 1 Unlimited.
