| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

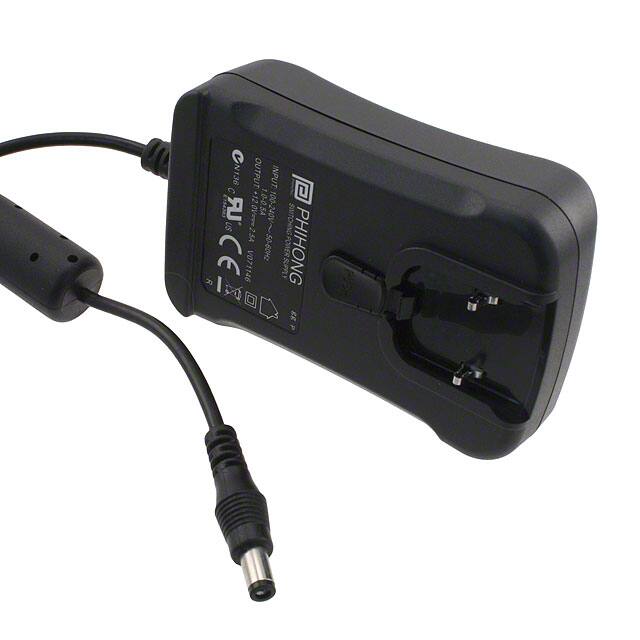

The Phihong USA PSAM30R-120 is a versatile AC/DC wall mount power adapter with a 30W output rating and a 12V output voltage. Designed for reliability and efficiency, it meets Level IV efficiency standards and is suitable for medical applications.
This adapter features a compact wall mount form factor (Class II) with dimensions of 100.0mm x 63.0mm x 35.7mm. It utilizes a multi-blade input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The operating temperature range is from 0°C to 40°C, and it consumes a maximum of 500mW at no load.
Compliance includes CE, C-Tick, and cURus approvals. The RoHS status is RoHS3 Compliant, and it is REACH Unaffected with a Moisture Sensitivity Level of 1 Unlimited. The cord length is approximately 70.9 inches (1.80m).
The output voltage is 12V.
The maximum output current is 2.5A.
The power rating is 30W.
The operating temperature range is 0°C to 40°C.
It meets Level IV efficiency.
Yes, it is RoHS3 Compliant.
The MSL is 1 Unlimited.
