| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Standards | |
| Voltage | |
| Width |

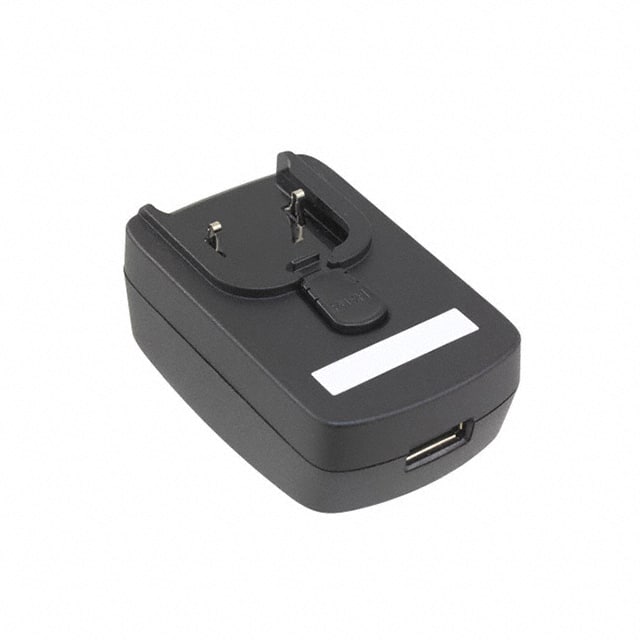

The Phihong USA PSAI05R-050QL6-R is a compact AC/DC wall mount adapter designed for various applications. It delivers a stable 5V DC output with a maximum current of 1A, providing a total power of 5W. The adapter features a USB Type A receptacle for its output connection.
This adapter meets US DoE Level VI and EU Ecodesign/ErP Lot 7 efficiency standards, ensuring energy-conscious operation. It operates within a wide AC input voltage range of 90 to 264VAC and a frequency of 47 to 63Hz. Key electrical specifications include a low leakage current of 0.02mA max and protections for over-voltage (7.2V max), short circuit, and over-current (5A max).
Designed for international use, the PSAI05R-050QL6-R has an operating temperature range of 0°C to 50°C. Its dimensions are 76.1mm x 45.8mm x 30.88mm. The adapter complies with multiple safety and EMC standards, including cULus, IEC, and AS/NZS 62368-1, and meets EMI emissions requirements for FCC Part 15 Class B and EN 55032 Class B.
Applications for this adapter include wireless communications, portable equipment, peripherals, and networking devices. It is suitable for ITE (Commercial) use and is built with UL 94 V0 flammability rating.
5.0V DC.
0°C to +50°C.
90 to 264VAC.
Level VI and CoC Tier 2.
cULus 62368-1, IEC 62368-1, AS/NZS 62368.1:2018.
USB Type A.
Over-voltage protection (7.2V max), over-current protection (5A max), and short circuit protection.
