| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

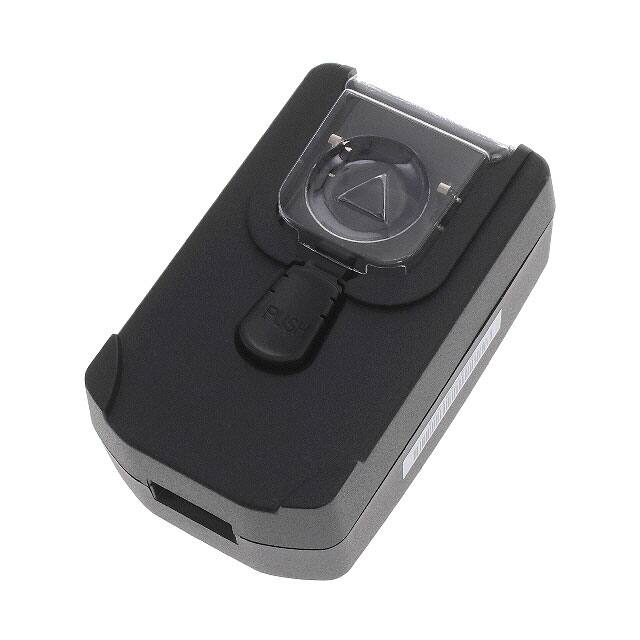

The Phihong USA PSAF10R-050QA-R is a 10W AC/DC wall mount adapter designed for various applications including personal electronics, portable equipment, peripherals, and networking.
This adapter features a 5.0V DC output with a maximum current of 2.0A, delivering a total of 10.0W. It incorporates a USB Type A receptacle for output connectivity and requires a multi-blade input connector, which is sold separately. The unit operates within a wide AC input voltage range of 90 to 264VAC and a frequency of 47 to 63Hz.
Compliance is a key feature, with the PSAF10R-050QA-R meeting US DoE Level VI efficiency, Ecodesign/ErP Lot 7 (EU) 2019/1782, and EU COC V5 Tier 2 standards. It also adheres to AS/NZS 4665.1-2005+A1:2009 and AS/NZS 4665.2-2005+A1:2009. Safety and EMC certifications include cULus, IEC, EAC, BIS, PSB, KC, PSE, BSMI, and CCC, with EMI emissions compliant to FCC Part 15 Class B and EN 55032/CISPR 32.
Designed for reliability, the adapter includes over-voltage protection up to 8.0V, auto-recovery short circuit protection, and over-current protection up to 3.0A. It operates within an environmental temperature range of 0°C to +40°C and has dimensions of 75.75mm x 45.5mm x 33.08mm.
5.0V nominal.
2.0A.
Wall Mount (Class II) with USB Type A output.
0°C to +40°C.
DoE Level VI, EU CoC V5 Tier 2, ErP Lot 7.
90 to 264VAC at 47-63Hz.
cULus 62368-1, IEC 62368-1, AS/NZS 62368.1:2018, EAC, BIS, PSB, KC, PSE, BSMI, CCC.
