| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Design | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Weight | |
| Width |

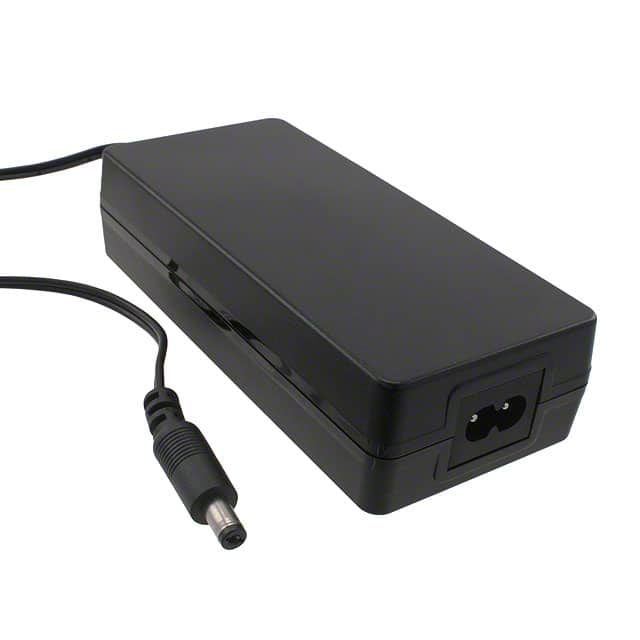

The Phihong USA PSAC60W-240 is a 60W AC/DC desktop adapter designed for various applications including portable equipment, gaming machines, notebook computers, and networking devices. It provides a stable 24V DC output at 2.5A.
This adapter series complies with US DoE Level VI efficiency standards and Ecodesign/ErP Lot 7 (EU) 2019/1782 regulations, ensuring energy efficiency. It features a non-vented, spill-proof case and a low-profile design, making it suitable for space-constrained environments. The adapter also meets Class B EMI standards for reduced electromagnetic interference.
Key electrical specifications include an input voltage range of 90 to 264VAC and an input frequency of 47 to 63Hz. The output connector is a standard 2.1mm x 5.5mm barrel plug with a positive center pin. The input connector is an IEC 60320 C8 type, requiring a separate cord.
Mechanical dimensions are 130mm x 60mm x 32.0mm, with a weight of 305g. The output cable is 1.20 meters long. Operating temperature ranges from 0°C to 40°C.
The PSAC60W-240 provides a 24.0V output at a maximum current of 2.5A.
The PSAC60W-240 has an output power rating of 60.0W.
The adapter accepts an AC input voltage range of 90 to 264VAC and an input frequency of 47 to 63Hz.
Yes, it complies with US DoE Level VI efficiency and Ecodesign/ErP Lot 7 (EU) 2019/1782.
The adapter measures 130mm in length, 60mm in width, and 32.0mm in height.
The adapter can operate in temperatures ranging from 0°C to 40°C.
It uses a 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug with a positive center pin.
