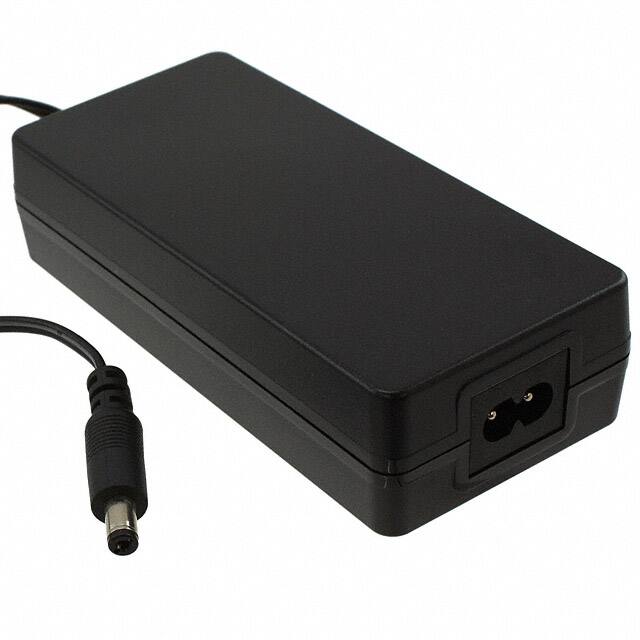

The Phihong USA PSAC60W-180 is a 60W AC/DC desktop adapter designed for various applications including portable equipment, gaming machines, notebook computers, and networking devices.
This adapter provides a stable 18V DC output at a maximum current of 3.33A, delivering 59.94W of power. It features a wide AC input voltage range of 90 to 264VAC and operates efficiently, meeting US DoE Level VI standards. The adapter also complies with Ecodesign/ErP Lot 7 (EU) 2019/1782 regulations.
Key electrical specifications include a low leakage current of 0.25mA max, over-voltage protection up to 27V, and auto-restart over-current protection at 6A max. The unit operates within a temperature range of 0°C to 40°C.
Designed in a compact desktop form factor (Class II), the PSAC60W-180 utilizes an IEC 60320 C8 input connector and a 2.1mm x 5.5mm x 9.5mm barrel plug output connector with a positive center pin. The output cord measures 1.20 meters.
90 to 264 VAC.
0°C to +40°C.
18V.
3.33A.
DoE Level VI.
cULus 60950-1 and IEC 60950-1.
Yes, the output can be shorted permanently without damage.
