| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage |

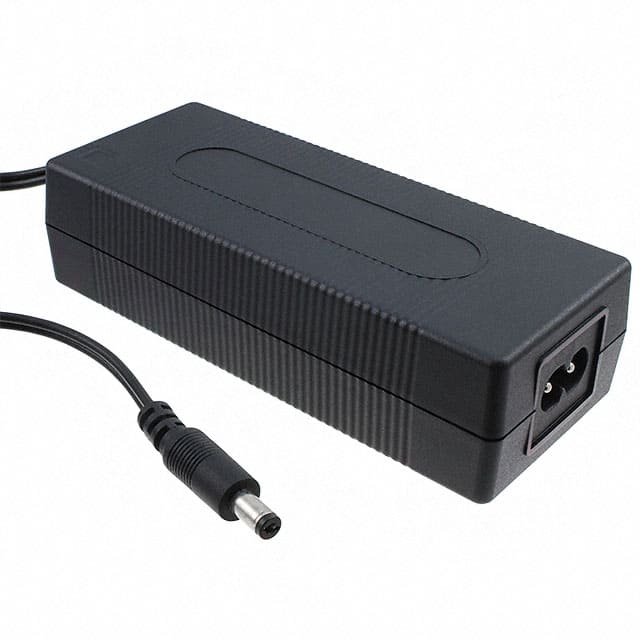

The Phihong USA PSAC45W-180 is a 45W AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a stable 18V output at 2.5A, meeting Level VI efficiency standards.
This adapter features an IEC 320-C8 input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 10.0mm) with positive center polarization. Its dimensions are 120.0mm x 50.4mm x 31.4mm, making it a low-profile solution suitable for various installations.
The operating temperature range is 0°C to 40°C, and it consumes a maximum of 300mW at no load. The input type requires a cord, which is sold separately. This adapter is compliant with RoHS3 and is classified as REACH Unaffected.
The PSAC45W-180 adapter provides an output voltage of 18V and an output current of 2.5A.
The power rating of the PSAC45W-180 adapter is 45W.
The PSAC45W-180 adapter meets US DOE Level VI efficiency standards.
The dimensions of the PSAC45W-180 adapter are 120.0mm in length, 50.4mm in width, and 31.4mm in height.
The operating temperature range for the PSAC45W-180 adapter is 0°C to 40°C.
The PSAC45W-180 adapter uses an IEC 320-C8 input connector.
The output connector is a barrel plug with dimensions 2.1mm I.D. x 5.5mm O.D. x 10.0mm and positive center polarization.
