| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Tape & Reel | |
| Voltage | |
| Weight | |
| Width |

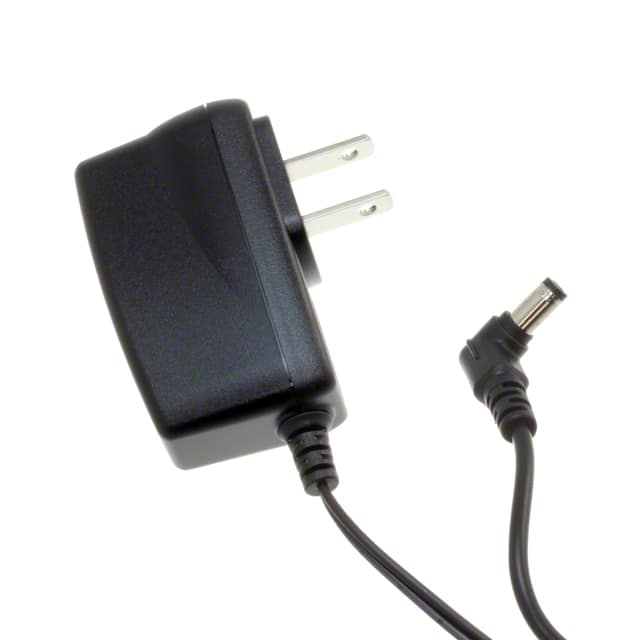

The Phihong USA PSAC24A-120L6-R-CR1 is a versatile AC/DC wall mount adapter designed for ITE (Commercial) applications. It provides a stable 12V DC output at a maximum current of 2A, delivering a total power of 24W.
This adapter features Level VI efficiency, ensuring reduced energy consumption, and operates within a wide input voltage range of 90 to 264 VAC. It includes essential protections such as over-voltage, over-current, and short-circuit protection for reliable operation. The Class II double-insulated design enhances safety.
With its fixed blade input connector (NEMA 1-15P) and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D.), the PSAC24A-120L6-R-CR1 is suitable for various portable equipment and peripherals. Its compact dimensions (83.5mm x 35.0mm x 53.5mm) and wall-mount form factor make it convenient for space-constrained environments.
90 to 264 VAC.
12V at 2A maximum.
Level VI with average efficiency of 80%.
0 to 40°C.
Barrel plug, right-angle, 2.1mm ID x 5.5mm OD.
FCC Class B, EN55022 Class B, EN50082-1, and certified to IEC 60950-1 and 62368-1.
Yes, over-voltage (20V max), over-current (5A max), and short-circuit protection.
