| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Weight | |
| Width |

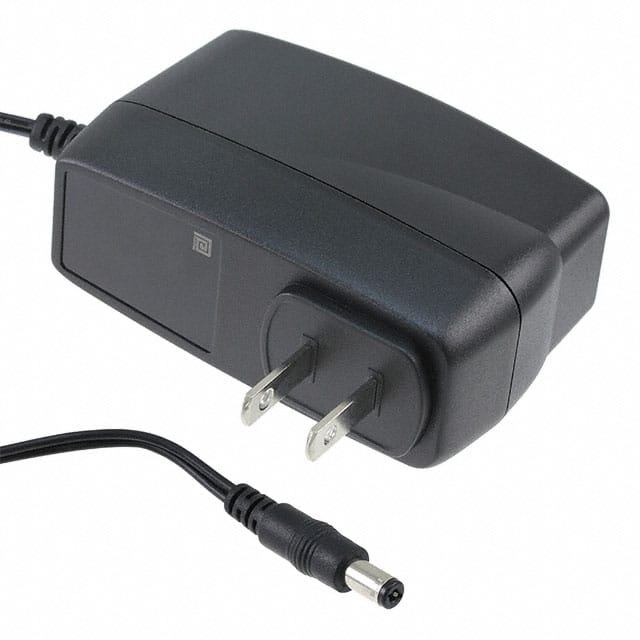

This Phihong USA PSAC24A-120L6 is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 12V output with a maximum current of 2A, providing a total power of 24W.
The adapter meets Level VI energy efficiency standards and features a fixed blade input connector (NEMA 1-15P) suitable for North American regions. Its compact dimensions of 83.5mm x 35.0mm x 53.5mm make it ideal for space-constrained designs.
Key electrical protections include over-voltage, over-current, and short-circuit protection, ensuring safe operation. The operating temperature range is from 0°C to 40°C, and it complies with emissions standards like FCC Class B and EN55022 Class B.
The output connector is a standard 2.1mm x 5.5mm center positive barrel plug. Safety approvals include CB, CE, cULus, cURus, and TUV.
The PSAC24A-120L6 provides a nominal 12V DC output at a maximum current of 2A.
The adapter accepts a universal AC input voltage range of 90 to 264 VAC at 50 to 60 Hz.
The adapter meets Level VI efficiency requirements and has an average efficiency of 80%.
The operating temperature range is 0°C to +40°C.
The adapter includes over-voltage protection (output not exceeding 20V), over-current protection (5.0A maximum at 230V AC), and short-circuit protection where the output can be shorted permanently without damage.
The adapter measures 83.5mm in length, 35.0mm in width, and 53.5mm in height, with a weight of 165g.
It meets FCC Class B and EN55022 Class B emissions standards and has immunity compliance with EN50082-1 (EN55024), including EN61000-4-2 Level 4 and EN61000-4-5 Level 2.
