| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage |

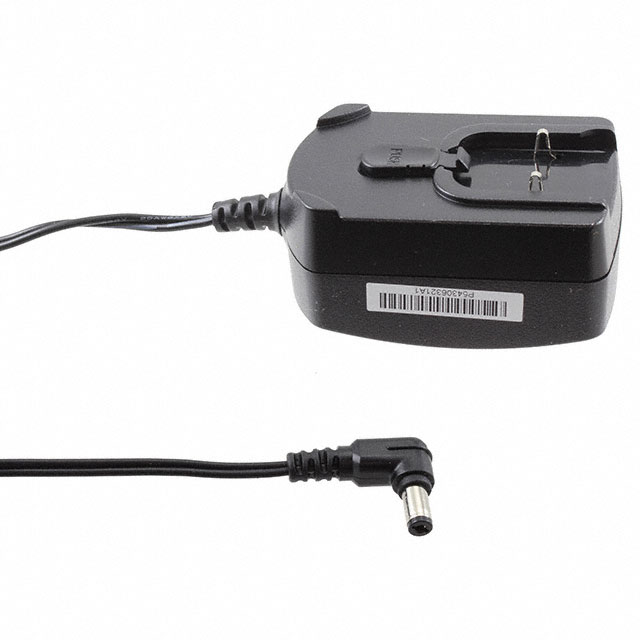

The Phihong USA PSAC12R-060-R-CR1 is an AC/DC external wall mount adapter designed for ITE commercial applications. It delivers a stable 6V output with a maximum current of 2A, providing a total power of 12W. This adapter meets stringent efficiency requirements, achieving Level VI and CoC Tier 1 standards, and operates within a wide input voltage range of 90 to 264 VAC.
The unit features a Class II wall mount form factor and a positive center polarization. The output is delivered via a 2.1mm I.D. x 5.5mm O.D. x 10.0mm barrel plug, suitable for various electronic devices. Its compact dimensions are 71.7mm x 50.0mm x 33.3mm, making it convenient for various setups. The adapter operates reliably in temperatures ranging from 0°C to 40°C and has a low no-load power consumption of 100mW maximum.
Compliance is assured with RoHS3 status and a Moisture Sensitivity Level (MSL) of 1. The input connector is a multi-blade type, sold separately, allowing for regional flexibility. Approved by agencies including AS/NZS, cULus, and IEC, this adapter is suitable for international use.
The PSAC12R-060-R-CR1 provides a 6V output voltage with a maximum output current of 2A.
The power rating for this adapter is 12W.
The adapter accepts an input voltage range of 90 to 264 VAC.
The operating temperature range is from 0°C to 40°C.
The dimensions are 71.7mm in length, 50.0mm in width, and 33.3mm in height.
It uses a Barrel Plug R/A connector with dimensions 2.1mm I.D. x 5.5mm O.D. x 10.0mm.
The RoHS status is RoHS3 Compliant.
