| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Ripple | |
| SVHC Present | |
| Voltage | |
| Weight | |
| Width |

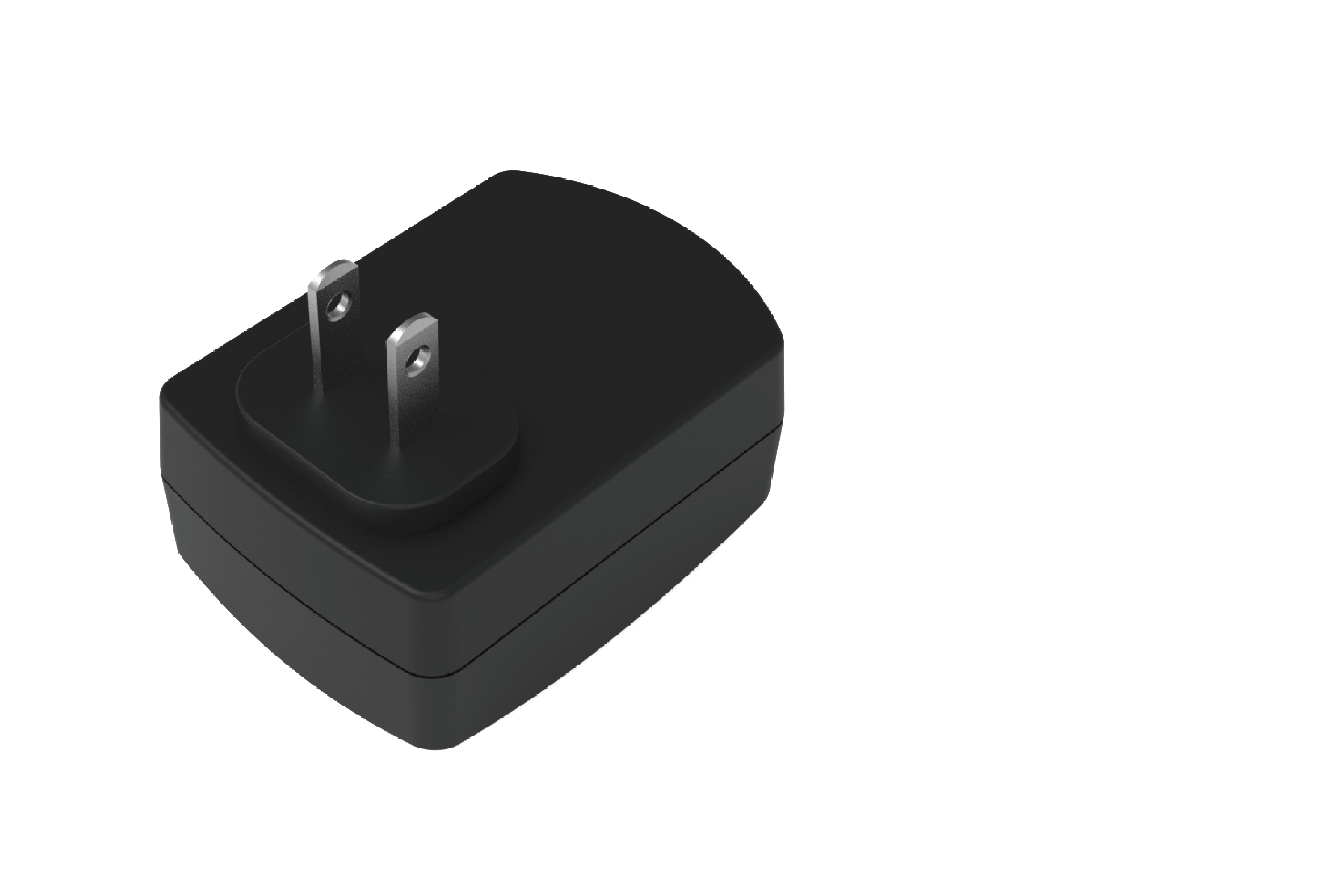

The Phihong USA PSAC12A-075 is a 12 Watt AC/DC wall mount adapter designed for various applications including wireless communications, portable equipment, and peripherals. It operates with an input voltage range of 90 to 264V AC and features a NEMA 1-15P input connector.
This adapter delivers a stable 7.5V DC output at 1.6A, with a maximum ripple of 100mV and line/load regulation of ±5%. It boasts Level VI efficiency, ensuring reduced energy consumption, with a minimum efficiency of 82.94%. The unit is Class II double insulated and meets Class B EMI standards.
Mechanical specifications include dimensions of 71.5mm x 50mm x 31.2mm and a weight of 124g. The output connector is a standard 2.1mm x 5.5mm barrel plug with a positive center. Safety approvals include UL/cUL 60950-1 and UL/cUL 62368-1.
The output voltage is 7.5V.
The maximum output current is 1.6A.
The power rating is 12W.
It meets Level VI efficiency standards.
The operating temperature range is 0°C to 40°C.
It uses a NEMA 1-15P input connector.
It has UL/cUL 60950-1 and UL/cUL 62368-1 safety approvals.
