| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

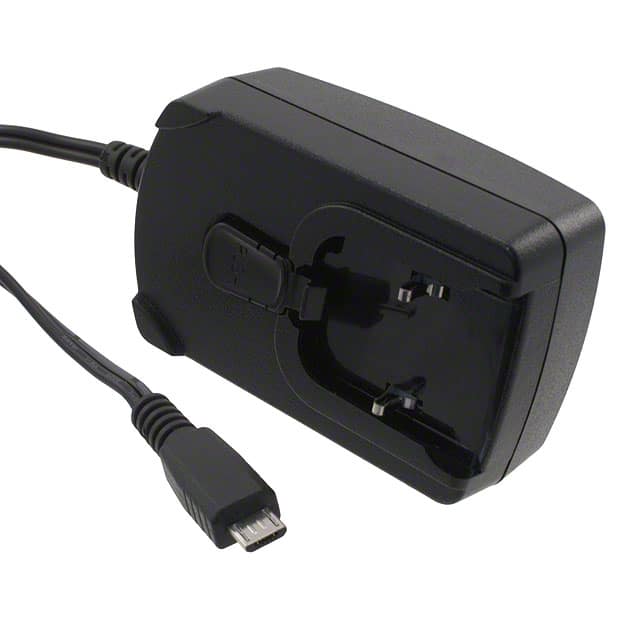

This Phihong USA PSAC09R-050 is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 5V output at 1.8A, totaling 9W of power.
The adapter features a Level V efficiency rating and is suitable for international use, operating within a 100-240 VAC input range. Its compact dimensions of 71.7mm x 45.0mm x 30.8mm make it convenient for various setups. The output connector is a USB Micro, and it includes a 1.50m cord.
Safety and compliance are addressed with CE, C-Tick, cULus, and GS approvals. The unit operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 300mW maximum.
Installation requires a multi-blade input connector, sold separately. Proper ventilation is recommended during use to prevent overheating, with a suggested clearance from heat sources.
The adapter provides a 5V DC output voltage and a 1.8A output current.
The adapter has a total power output of 9W.
The adapter can operate within a temperature range of 0°C to 40°C.
The dimensions are 71.7mm x 45.0mm x 30.8mm.
This adapter meets Level V efficiency standards.
The adapter features a USB Micro output connector.
