| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

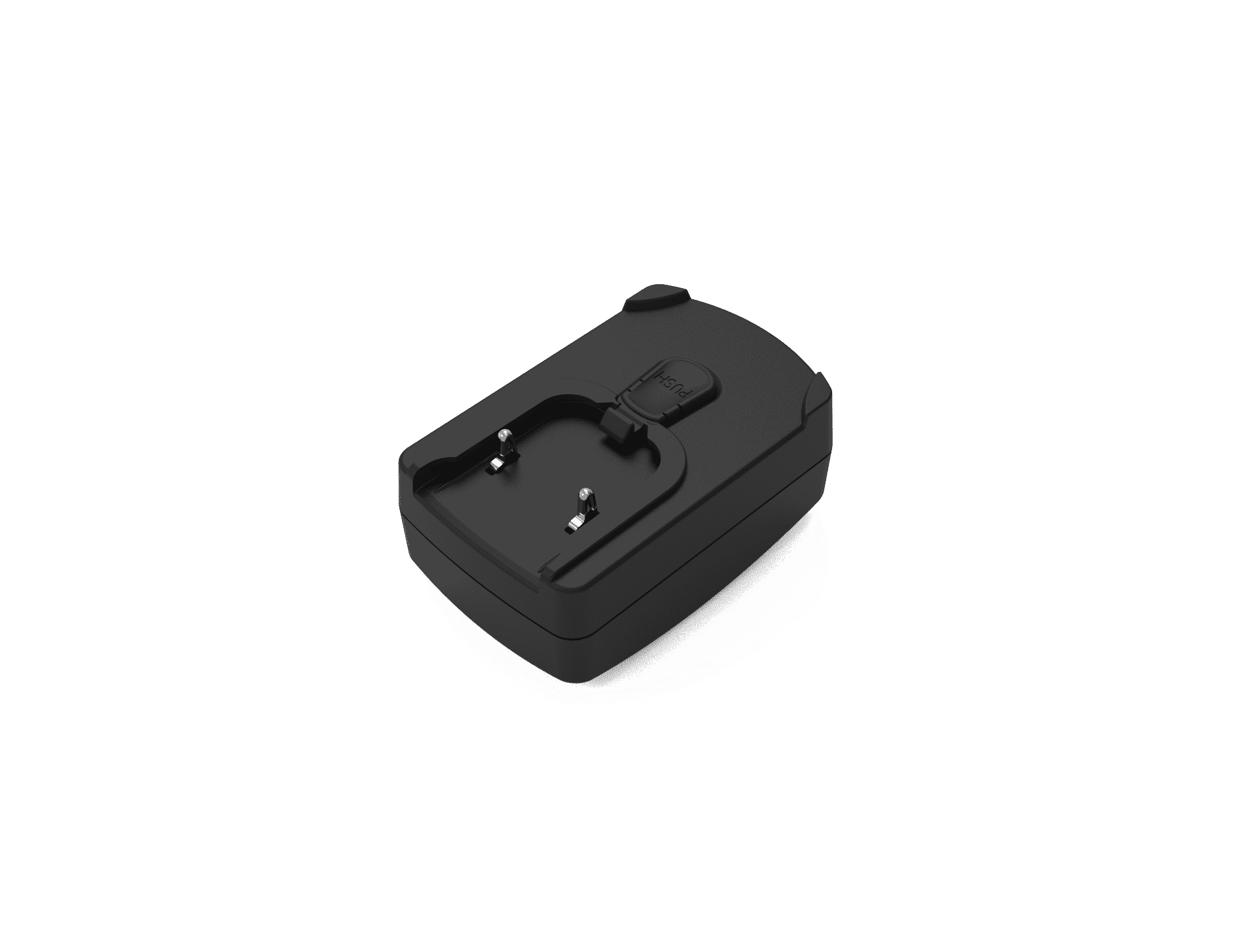

The Phihong USA PSAC05R-050L6B is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a consistent 5V output at 1A, providing a total of 5W of power.
This adapter features a compact wall mount form factor (Class II) with dimensions of 71.7mm x 45.0mm x 29.8mm. It utilizes a multi-blade input connector and a USB Mini output connector. The operating temperature range is from 0°C to 40°C, and it boasts a low no-load power consumption of 30mW maximum.
Compliance is met with standards such as 60950-1 and 62368-1, and it holds approval agency certifications including CB, CE, cULus, and TUVgs. The adapter is designed for international use and adheres to Efficiency Level VI and CoC Tier 2 standards.
5V DC.
1A.
0°C to 40°C.
Level VI and CoC Tier 2.
CB, CE, cULus, and TUVgs.
71.7mm x 45.0mm x 29.8mm.
1.5m (59 inches).
