| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Halogen Free | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Weight | |
| Width |

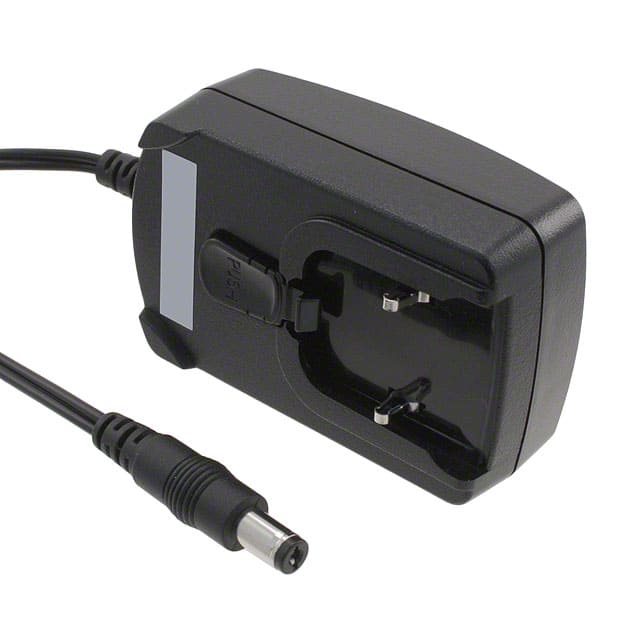

This AC/DC wall mount adapter from Phihong USA, model PSAC05R-050(P), delivers 5W of power with a stable 5V output and a maximum current of 1A. It is designed for international use, accepting an input voltage range of 90 to 264 VAC. The adapter meets Level V efficiency standards and carries approvals from CE, cULus, and TUVgs, making it suitable for ITE (Commercial) applications.
The unit features a compact wall mount form factor (Class II) with dimensions of 71.7mm x 45.0mm x 29.8mm and a weight of 120.2g. It utilizes a multi-blade input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D.) with positive center polarization. The operating temperature range is from 0°C to 40°C, and it has a low no-load power consumption of 300mW maximum. The integrated cord length is 1.50 meters (59 inches).
The PSAC05R-050(P) has an output voltage of 5V and a maximum output current of 1A.
This adapter accepts an input voltage range of 90 to 264 VAC.
The operating temperature range for this unit is 0°C to 40°C.
Yes, this part is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
The dimensions are 71.7mm x 45.0mm x 29.8mm.
