| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Isolation | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Power | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Weight | |
| Width |

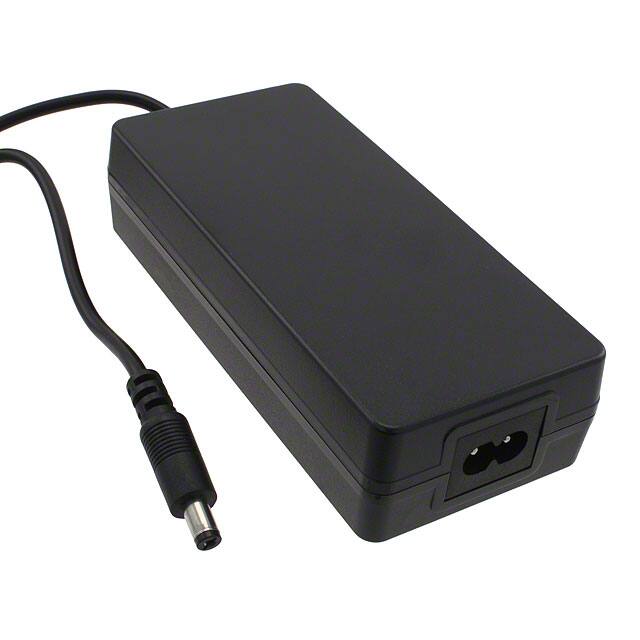

The Phihong USA PSAA60W-180 is a versatile AC/DC desktop power supply designed for various applications. It delivers a stable 18V DC output with a maximum current of 3.3A, providing up to 60W of power. This adapter is compliant with Efficiency Level V standards and meets Ecodesign ErP Directive 2009/125/EC requirements.
Featuring a universal input voltage range of 100 to 240V AC at 47 to 63Hz, it is suitable for international use. The adapter includes essential protection features such as over-voltage, over-current, and short-circuit protection. Its compact dimensions (130mm x 60mm x 32mm) and desktop form factor make it convenient for integration into various systems.
Applications include portable equipment, networking devices, peripherals, and gaming machines. The output connector is a standard 2.1mm I.D. x 5.5mm O.D. barrel plug with a positive center polarity. Safety approvals include CE, cULus, and TUVgs, ensuring reliable and safe operation.
The Phihong PSAA60W-180 provides an 18V DC output at a maximum current of 3.3A.
The PSAA60W-180 adapter has a maximum output power of 60W.
The Phihong PSAA60W-180 meets Efficiency Level V.
The operating temperature range for the PSAA60W-180 is 0°C to 40°C.
The dimensions of the PSAA60W-180 adapter are 130.0mm in length, 60.0mm in width, and 32.0mm in height.
The PSAA60W-180 uses a 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug with a positive center.
Yes, the PSAA60W-180 is compliant with EISA and the Ecodesign ErP Directive 2009/125/EC Level 2 Annex 1b.
