Mfr Part #:

PSAA30R-150-R-CNR1

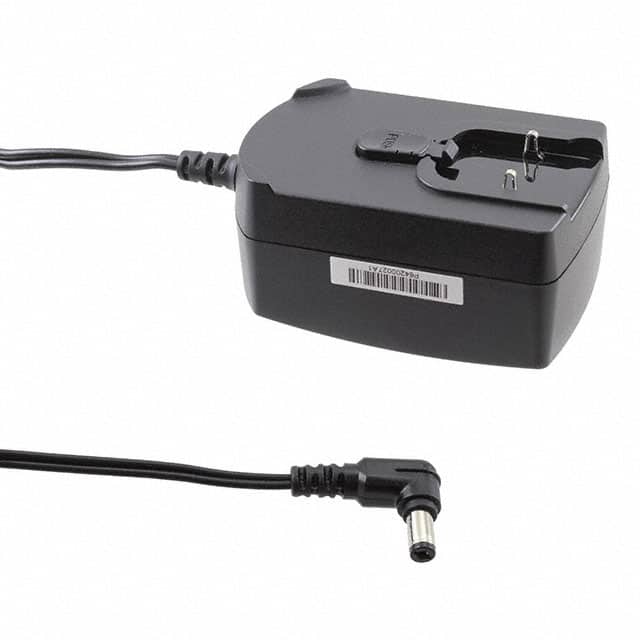

The Phihong USA PSAA30R-150-R-CNR1 is a 30W AC/DC wall mount adapter providing a 15V output. It is designed for ITE (Commercial) applications and meets Level VI efficiency standards.

Stock on Request

PSAA30R-150-R-CNR1 Description

Short technical summary and product information.

This Phihong USA PSAA30R-150-R-CNR1 is an AC/DC wall mount adapter with a power rating of 30W and an output voltage of 15V. It is suitable for ITE (Commercial) applications and adheres to international standards including 60950-1 and 62368-1.

The adapter features a Level VI efficiency rating and a low no-load power consumption of 300mW maximum. Its form factor is a Class II Wall Mount, with dimensions of 82.7mm x 55.0mm x 39.1mm. The input connector is a Multi-Blade type, and the output connector is a Barrel Plug R/A with a 2.1mm I.D. x 5.5mm O.D. x 10.0mm size and a negative center polarization.

Designed for international use, this adapter operates within a temperature range of 0°C to 40°C. It includes a 59-inch (1.50m) cord. The RoHS status is RoHS3 Compliant, Moisture Sensitivity Level is 1 Unlimited, and REACH Status is REACH Unaffected.

PSAA30R-150-R-CNR1 Quick Information

Product Type: AC DC Desktop, Wall Adapters

Canonical Name: Phihong USA PSAA30R-150-R-CNR1 AC/DC Wall Mount Adapter

Subcategory: Wall Adapter

PSAA30R-150-R-CNR1 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PSAA30R-150-R-CNR1 Features

30W AC/DC wall mount adapter.
15V output voltage.
Level VI efficiency rating.
Suitable for ITE (Commercial) applications.
RoHS3 Compliant.

PSAA30R-150-R-CNR1 Applications

Powers commercial information technology equipment.
Ideal for networking and telecommunications devices.
Used in point-of-sale and retail systems.
Suitable for global applications with interchangeable blades.

PSAA30R-150-R-CNR1 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the output voltage of the PSAA30R-150-R-CNR1?

The output voltage is 15V.

What is the power rating of this AC/DC adapter?

The power rating is 30W.

What is the efficiency level of the PSAA30R-150-R-CNR1?

The efficiency is Level VI.

What are the operating temperature limits for this adapter?

The operating temperature range is 0°C to 40°C.

What type of output connector does this adapter use?

It uses a Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 10.0mm with Negative Center polarization.

Is the PSAA30R-150-R-CNR1 RoHS compliant?

Yes, the RoHS Status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level is 1 Unlimited.

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	Phihong USA
Applications	ITE (Commercial)
Approval Agency	AS/NZS, cULus, IEC
Cord Length	59" (1.50m)
Current	2A
Efficiency	Level VI
Form	Wall Mount (Class II)
Height	39.1mm (1.54")
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
Length	82.7mm (3.26")
No Load Power Consumption	300mW (Max)
Operating Temperature	0°C ~ 40°C
Output Connector	Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 10.0mm
Polarization	Negative Center
Power (Watts)	30 W
Region Utilized	International
SVHC Present	Not Present
Standard Number	60950-1; 62368-1
Voltage	15V
Width	55.0mm (2.17")
