| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

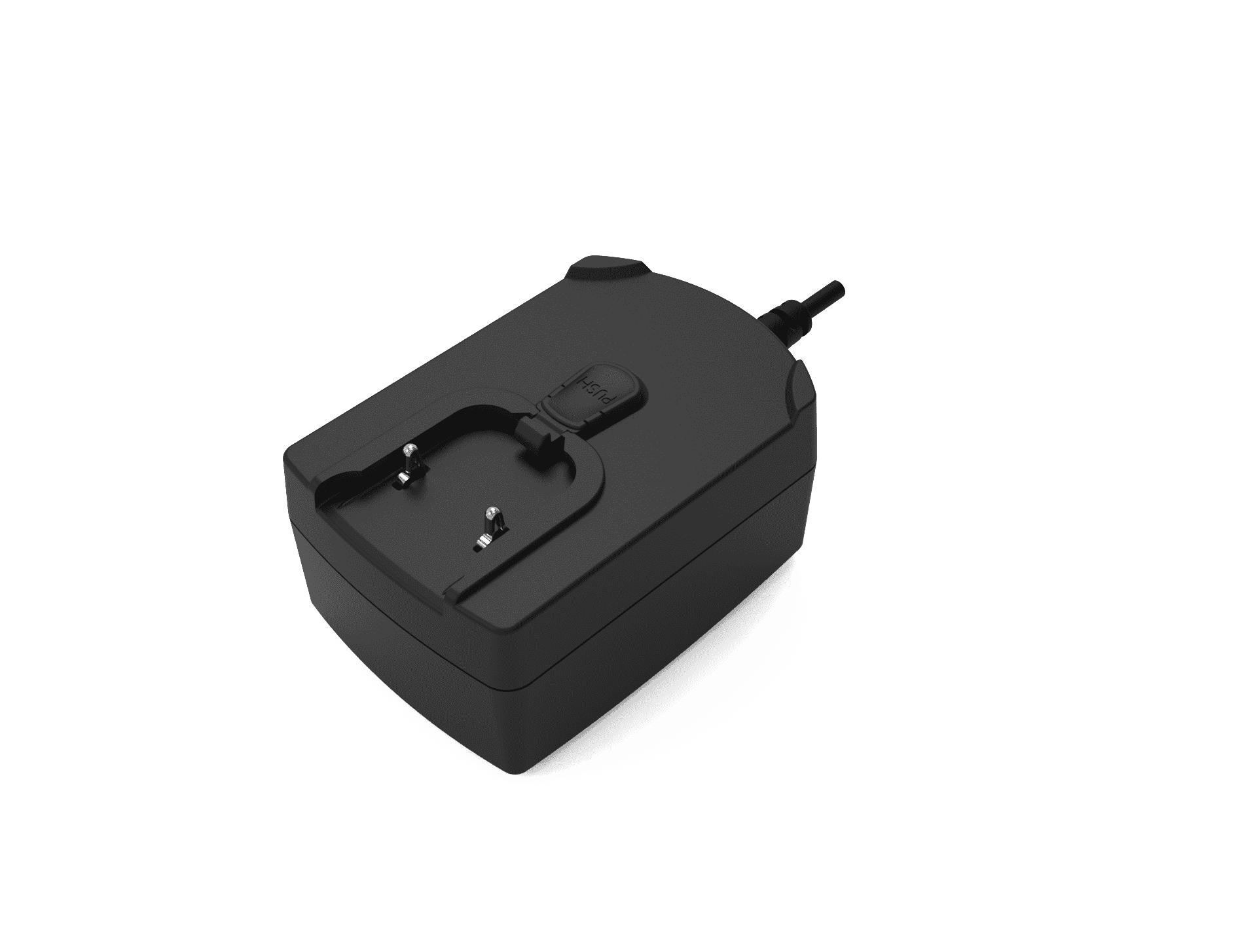

The Phihong USA PSAA30R-120 is a versatile AC/DC wall mount adapter designed for ITE (Commercial) applications. This adapter delivers a stable 12V output with a maximum current of 2.5A, providing a total power of 30W.
Key electrical specifications include Level VI efficiency compliance and a low no-load power consumption of 300mW maximum. The adapter operates within a temperature range of 0°C to 40°C. It features a multi-blade input connector, requiring separate blades for different regions, and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 10.0mm) with positive center polarization.
Mechanically, the PSAA30R-120 has dimensions of 82.7mm x 55.0mm x 39.1mm and is designed as a Class II wall mount unit. Its international region utilization makes it suitable for global use. The integrated cord measures 1.50 meters (59 inches) in length.
The PSAA30R-120 adapter has an output voltage of 12V and an output current of 2.5A.
The power rating for the PSAA30R-120 adapter is 30W.
The PSAA30R-120 adapter meets Level VI efficiency standards.
The operating temperature range for the PSAA30R-120 adapter is 0°C to 40°C.
The PSAA30R-120 uses a barrel plug output connector with dimensions of 2.1mm I.D. x 5.5mm O.D. x 10.0mm and positive center polarization.
