| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage |

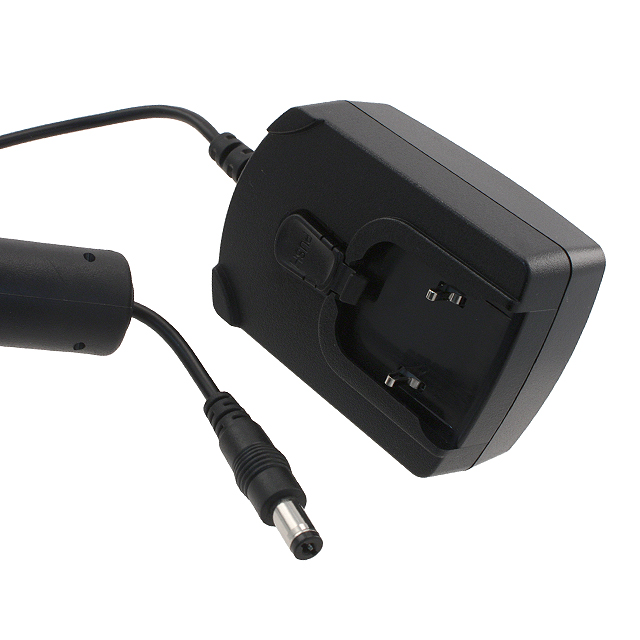

This AC/DC wall mount adapter from Phihong USA, part number PSAA20R-120-RPA, delivers 20W of power with a stable 12V output. It meets Level V efficiency standards, ensuring energy savings.
The adapter is designed for ITE (Commercial) applications and features a compact wall mount (Class II) form factor. Its dimensions are 71.7mm x 50.0mm x 31.0mm, making it suitable for space-constrained environments. The input connector is a multi-blade type, and the output is a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 10.0mm) with positive center polarization.
Operating within a temperature range of 0°C to 40°C, this adapter is built for reliable performance in typical commercial settings. The cord length is 1.50 meters (59 inches). It complies with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1.
The output voltage is 12V DC.
The maximum output current is 1.67A.
The maximum power output is 20W.
It uses a barrel plug with 2.1mm I.D. and 5.5mm O.D.
The operating temperature range is 0°C to 40°C.
The adapter meets Level V efficiency standards.
