| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

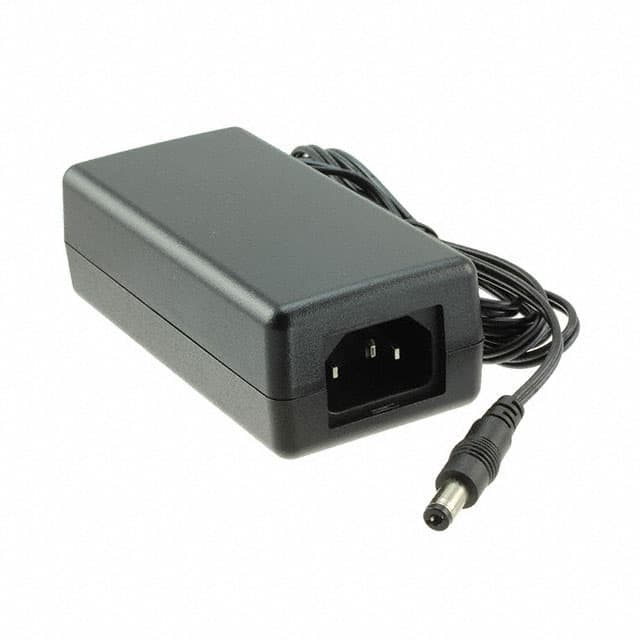

This Phihong USA PSAA18U-120-R-CN1 is a versatile 18W AC/DC desktop power adapter designed for ITE (Commercial) applications. It delivers a stable 12V output with a maximum current of 1.5A, suitable for a wide range of electronic equipment.
The adapter features an IEC 320-C14 input connector, allowing for easy connection with standard power cords (sold separately). The output is provided via a 2.1mm inner diameter by 5.5mm outer diameter barrel plug, with a negative center polarization. Its compact dimensions of 103.0mm x 49.0mm x 33.5mm make it suitable for various installation environments.
With a Level V efficiency rating and a low no-load power consumption of 300mW maximum, this adapter is designed for energy efficiency. It operates within a temperature range of 0°C to 40°C and is approved by CE and cULus agencies, ensuring compliance with international standards. The desktop form factor (Class I) and international region utilization make it a flexible power solution.
100-240 VAC.
12V.
1.5A.
Level V.
0°C to 40°C.
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm.
Negative center.
