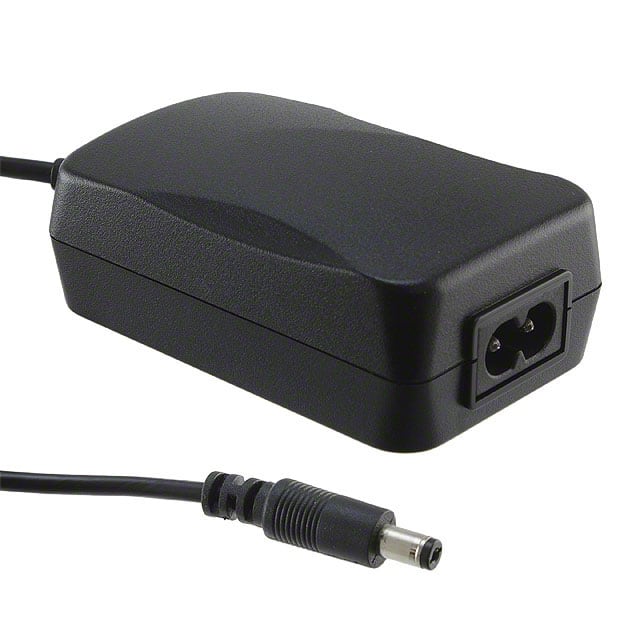

This Phihong USA PSAA15W-180L6 is an AC/DC external desktop adapter designed for ITE (Commercial) applications. It provides a stable 18V output at a maximum current of 830mA, delivering a total power of 15W. The adapter operates with a wide input voltage range of 90 to 264 VAC and features an IEC 320-C8 input connector. The output is delivered via a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization.
Designed for efficiency, this adapter meets Level VI standards and has a low no-load power consumption of 250mW maximum. Its compact dimensions are 81.2mm x 50.0mm x 29.8mm, making it suitable for various desktop setups. The operating temperature range is from 0°C to 40°C. The input cord is sold separately, and the unit is classified as Class II.
Compliance is indicated by approval agencies including CB, CE, and cULus. The device is RoHS3 Compliant and has an MSL rating of 1 Unlimited. This model is part of the PSAA15W-L6 series.
90 to 264 VAC.
18V DC.
830mA.
15W.
Level VI.
Desktop (Class II).
0°C to 40°C.
