| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Weight | |
| Width |

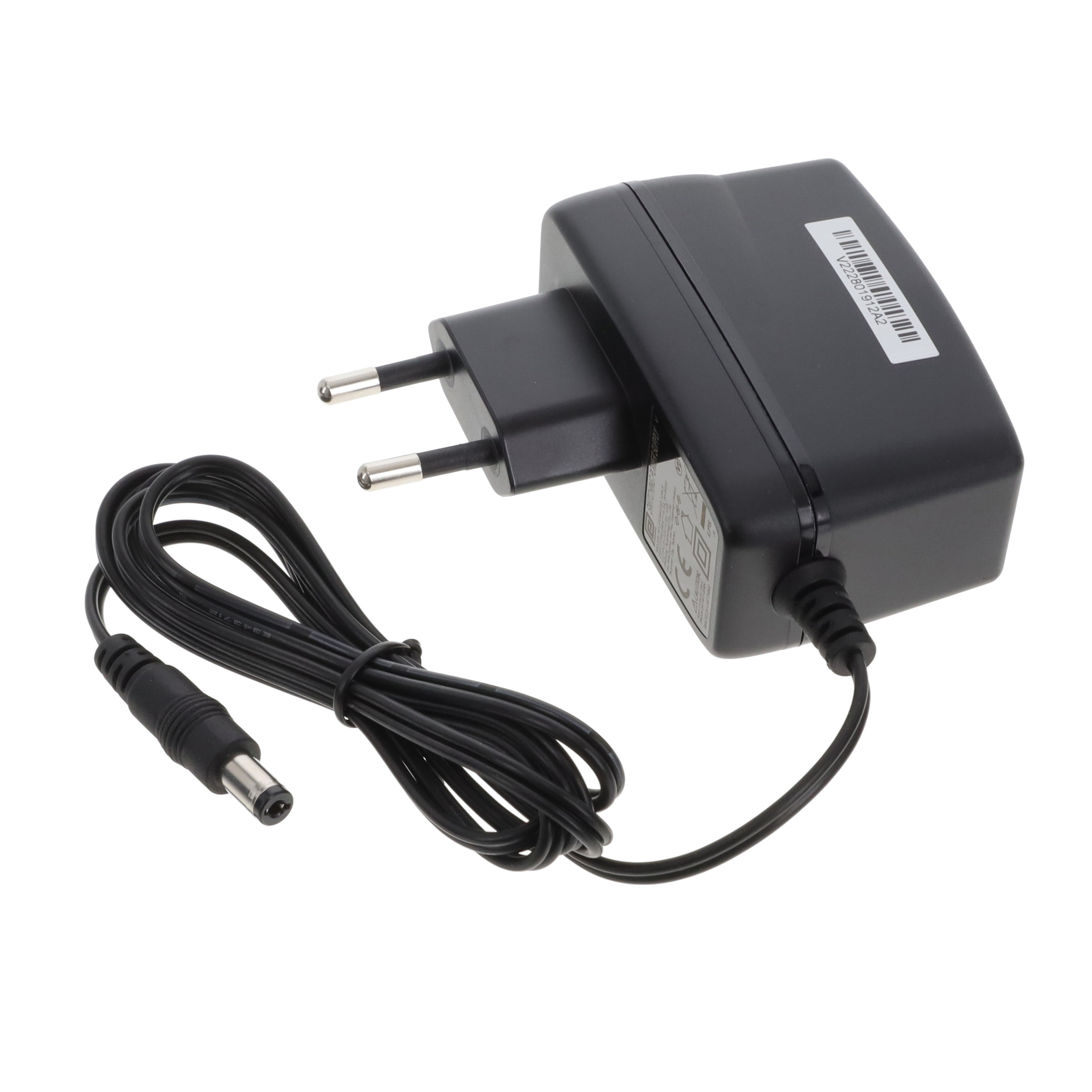

The Phihong USA PSAA12E-120L6 is an AC/DC external wall mount adapter designed for ITE commercial applications. It delivers a stable 12V output with a maximum current of 1A, providing a total power of 12W. This adapter features a fixed blade input and a barrel plug output (2.1mm I.D. x 5.5mm O.D. x 9.5mm).
Engineered for efficiency, the PSAA12E-120L6 meets Level VI and CoC Tier 2 standards, ensuring reduced energy consumption. Its input voltage range is 90 to 264 VAC, making it suitable for use in Europe and other regions. The operating temperature range is from 0°C to 40°C.
With dimensions of 71.2mm x 34.0mm x 46.0mm and a weight of 84.82g, this Class II adapter is compact and practical. It is RoHS compliant and comes in bulk packaging.
The PSAA12E-120L6 adapter provides a 12V output voltage and a maximum output current of 1A.
The Phihong USA PSAA12E-120L6 has a power rating of 12W.
The input voltage range for the PSAA12E-120L6 adapter is 90 to 264 VAC.
The PSAA12E-120L6 adapter meets Level VI and CoC Tier 2 efficiency standards.
The dimensions of the PSAA12E-120L6 adapter are 71.2mm x 34.0mm x 46.0mm.
The operating temperature range for this adapter is 0°C to 40°C.
The PSAA12E-120L6 uses a Barrel Plug connector with dimensions 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
