| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

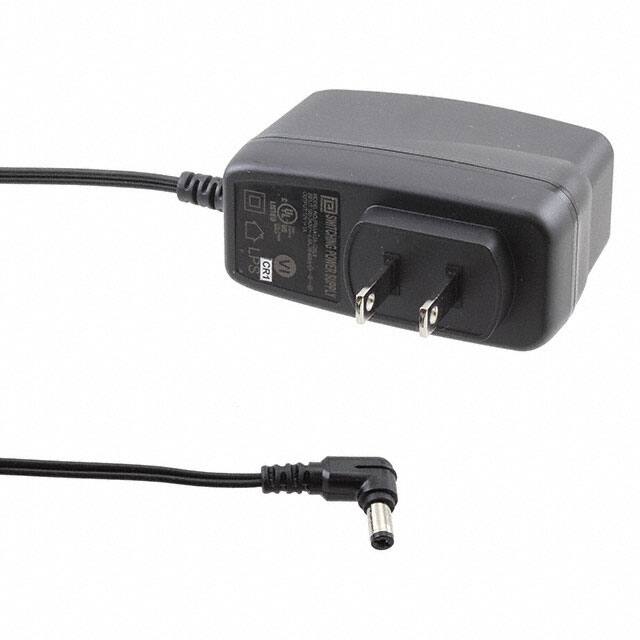

This Phihong USA PSAA12A-120L6-R-CR1 is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 12VDC output at up to 1A, providing a total of 12W of power. The adapter meets Level VI efficiency standards and CoC Tier 2 requirements, ensuring energy savings.
Designed for convenience, it features a fixed blade NEMA 1-15P input connector suitable for North American outlets and a right-angle barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 10.0mm) with positive center polarization. The unit operates within a temperature range of 0°C to 40°C and has a compact form factor with dimensions of 71.2mm x 34.0mm x 46.0mm.
Compliance is assured with cULus and PSE agency approvals, and it adheres to standard numbers 55022, 60950-1, and 62368-1. The adapter is RoHS3 compliant and has an MSL of 1, indicating unlimited moisture sensitivity. Its low no-load power consumption of 75mW (Max) further enhances its efficiency.
The adapter provides a 12VDC output at a maximum current of 1A.
This adapter has a power rating of 12W.
It uses a NEMA 1-15P input connector, suitable for North American outlets.
The adapter measures 71.2mm in length, 34.0mm in width, and 46.0mm in height.
The adapter can operate in temperatures ranging from 0°C to 40°C.
Yes, the adapter is RoHS3 compliant.
The Moisture Sensitivity Level (MSL) is 1.
