| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Ripple | |
| SVHC Present | |
| Voltage | |
| Weight | |
| Width |

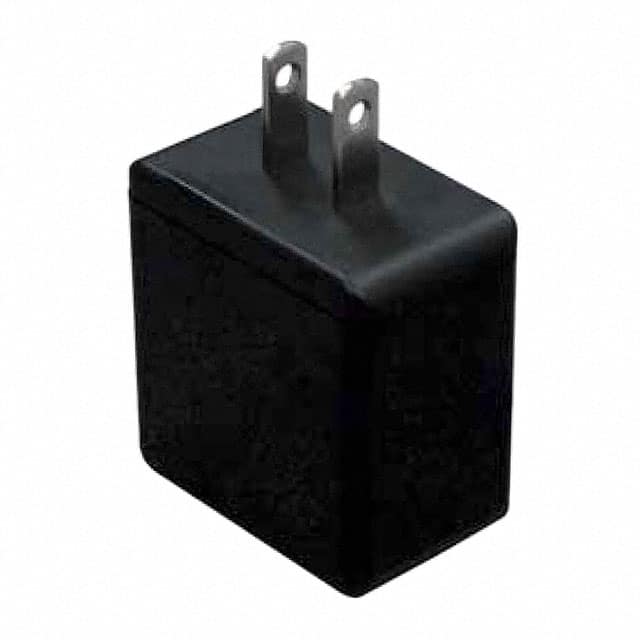

The Phihong USA PSAA10A-050QL6A is a compact, fixed-blade AC/DC wall mount adapter designed for various applications. It delivers a continuous 10W of power with a stable 5V output voltage and a maximum current of 2A.
This adapter meets Level VI efficiency standards, ensuring energy savings and reduced heat generation. Key features include over-voltage protection (OVP), over-current protection (OCP), and short-circuit protection for enhanced safety and reliability. The input voltage range is 90 to 264 VAC, making it suitable for global use, with a NEMA 1-15P input connector.
Designed for ITE (Commercial) applications, the PSAA10A-050QL6A operates within a temperature range of 0°C to 40°C. Its mechanical dimensions are 27.0mm x 45.0mm x 45.0mm, and it weighs approximately 40g. The output is provided via a USB A receptacle, making it convenient for charging personal electronics, tablets, and digital cameras.
90 to 264 VAC.
5V at 2A (10W).
Wall Mount (Class II) with NEMA 1-15P input connector and USB A receptacle output.
0°C to +40°C.
Over-voltage protection limits output to 8V; over-current protection limits output to 3A; short circuit protection provides auto recovery.
≤30mW at 230Vac/50Hz.
Level VI.
