| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

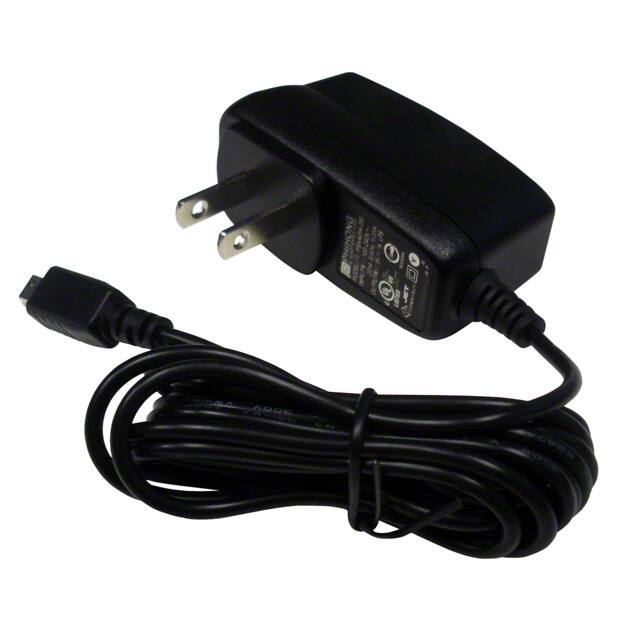

This Phihong USA PSAA05A-050 is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It provides a stable 5V output with a maximum current of 1A, delivering a total power of 5W. The adapter meets Level V efficiency standards and features a NEMA 1-15P input connector, common in North America.
The unit has a compact form factor with dimensions of 66.5mm x 28.0mm x 39.0mm, making it suitable for space-constrained environments. It operates within a temperature range of 0°C to 50°C and includes a 1.80m cord length. The output is delivered via a USB Mini connector. Approval agencies include cULus and PSE, indicating compliance with safety standards.
This adapter is classified as Class II and is designed for wall mounting. It is suitable for various commercial applications requiring a reliable 5V power source.
The output voltage is 5V DC.
The adapter measures 66.5mm x 28.0mm x 39.0mm (2.62" x 1.10" x 1.54").
The operating temperature range is 0°C to 50°C.
The output current is 1A.
It uses a NEMA 1-15P fixed blade input connector.
The output connector is a USB Mini.
It is approved to cULus and PSE standards.
