| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

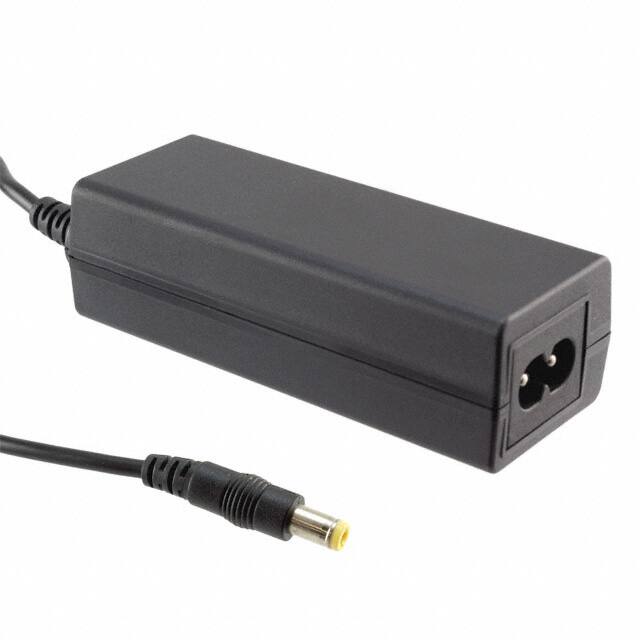

The Phihong USA PSA40W-190 is a versatile 40-watt AC/DC desktop adapter designed for ITE (Commercial) applications. It provides a stable 19V DC output with a 2.1A current rating, suitable for a wide range of electronic equipment.
This adapter operates internationally and meets Level V efficiency standards, ensuring energy savings. It features an IEC 320-C8 input connector, requiring a separate power cord, and a standard barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization.
With a compact desktop form factor (Class II), the PSA40W-190 measures 90.0mm x 35.0mm x 27.0mm. It is designed for operation within a temperature range of 0°C to 40°C. The adapter is approved by CE, cULus, and TUVgs, indicating compliance with safety and performance standards.
The output voltage is 19V at 2.1A.
Barrel plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm, with positive center polarity.
IEC 320-C8.
0°C to 40°C.
Level V.
90.0mm x 35.0mm x 27.0mm.
CE, cULus, and TUVgs.
