| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

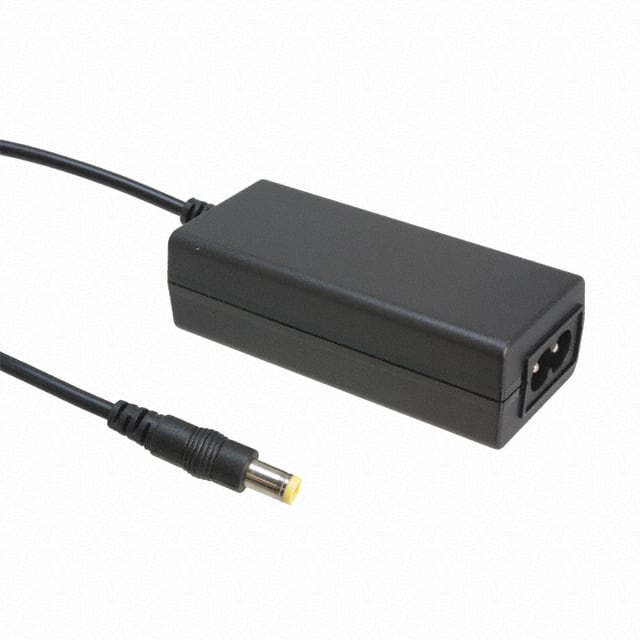

The Phihong USA PSA30W-190A is a versatile AC/DC desktop power adapter designed for ITE commercial applications. It delivers a stable 19V output at 1.8A, providing a total power of 34W. This adapter meets Level V efficiency standards, contributing to energy savings.
Key features include a compact desktop form factor (Class II) with dimensions of 80.0mm x 35.0mm x 24.0mm. It utilizes an IEC 320-C8 input connector and a standard barrel plug output (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The operating temperature range is from 0°C to 40°C, suitable for typical indoor environments. The adapter also boasts a low no-load power consumption of a maximum of 200mW.
Designed for international use, it supports a wide input voltage range of 100-240 VAC. The unit is compliant with CE, cULus, and TUVgs approval agencies. The PSA30W-190A is suitable for various electronic devices requiring a reliable external power supply.
The PSA30W-190A adapter provides an output voltage of 19V and an output current of 1.8A.
The power rating of the PSA30W-190A adapter is 34W.
The adapter operates within a temperature range of 0°C to 40°C.
The adapter uses an IEC 320-C8 input connector.
The dimensions of the adapter are 80.0mm in length, 35.0mm in width, and 24.0mm in height.
Yes, the adapter is listed as RoHS3 Compliant.
