| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

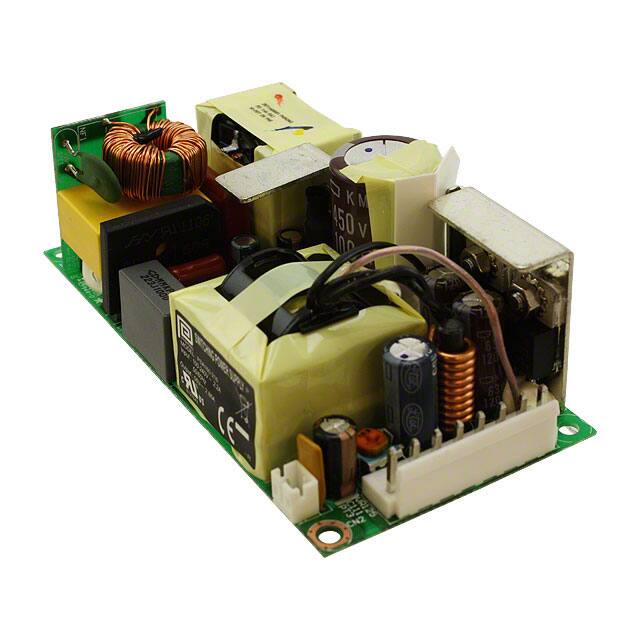

The Phihong USA PSA160-210 is an AC/DC converter designed for ITE (Commercial) applications. This open-frame unit offers a power output of 160W and features universal input capabilities.
Key electrical specifications include a current rating of 13.34A and an efficiency of 90%. The converter operates within a temperature range of -20°C to 70°C. It has a voltage isolation rating of 3 kV and is approved by CE and cURus.
Mechanically, the PSA160-210 is designed for chassis mounting and has dimensions of 101.6mm in length, 50.8mm in width, and 34.0mm in height. It provides a single output.
Environmental compliance includes RoHS3 compliance, an MSL rating of 1, and REACH unaffected status.
12V
160W
90%
3kV
-20°C to 70°C
Chassis Mount
CE, cURus
