| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Weight | |
| Width |

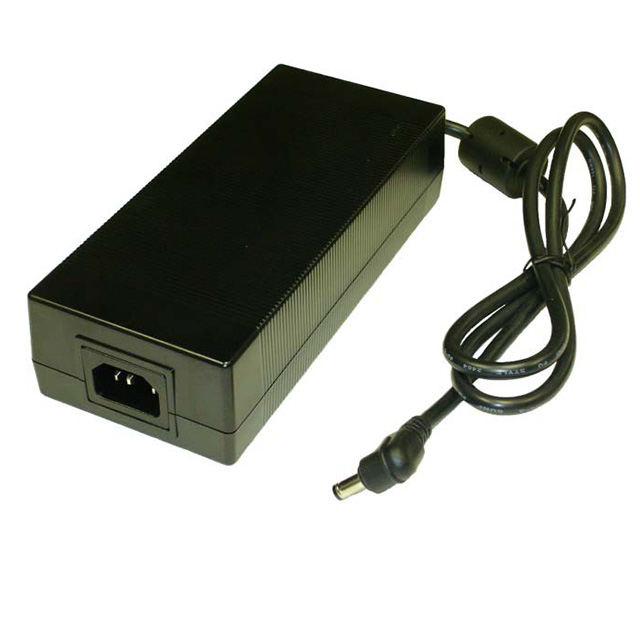

The Phihong USA PSA120U-560L6 is an AC/DC external desktop adapter delivering 120W of power with a 56V output voltage and a maximum output current of 2.14A. This adapter meets Level VI efficiency standards and CoC Tier 2 requirements, ensuring energy efficiency.
Designed for ITE (Commercial) applications, it operates within a wide input voltage range of 90 to 264 VAC. The adapter features an IEC 320-C14 input connector and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 10.0mm) with positive center polarization. Its dimensions are 152.0mm x 73.0mm x 37.0mm, and it weighs 816.5g.
The PSA120U-560L6 operates in a temperature range of 0°C to 40°C. It requires a separate input cord and is suitable for international use. The adapter is RoHS3 compliant and has an MSL rating of 1.
The output voltage is 56V.
The maximum output current is 2.14A.
The power rating is 120W.
The input voltage range is 90 to 264 VAC.
It meets Level VI efficiency and CoC Tier 2.
The operating temperature range is 0°C to 40°C.
It uses a Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 10.0mm.
