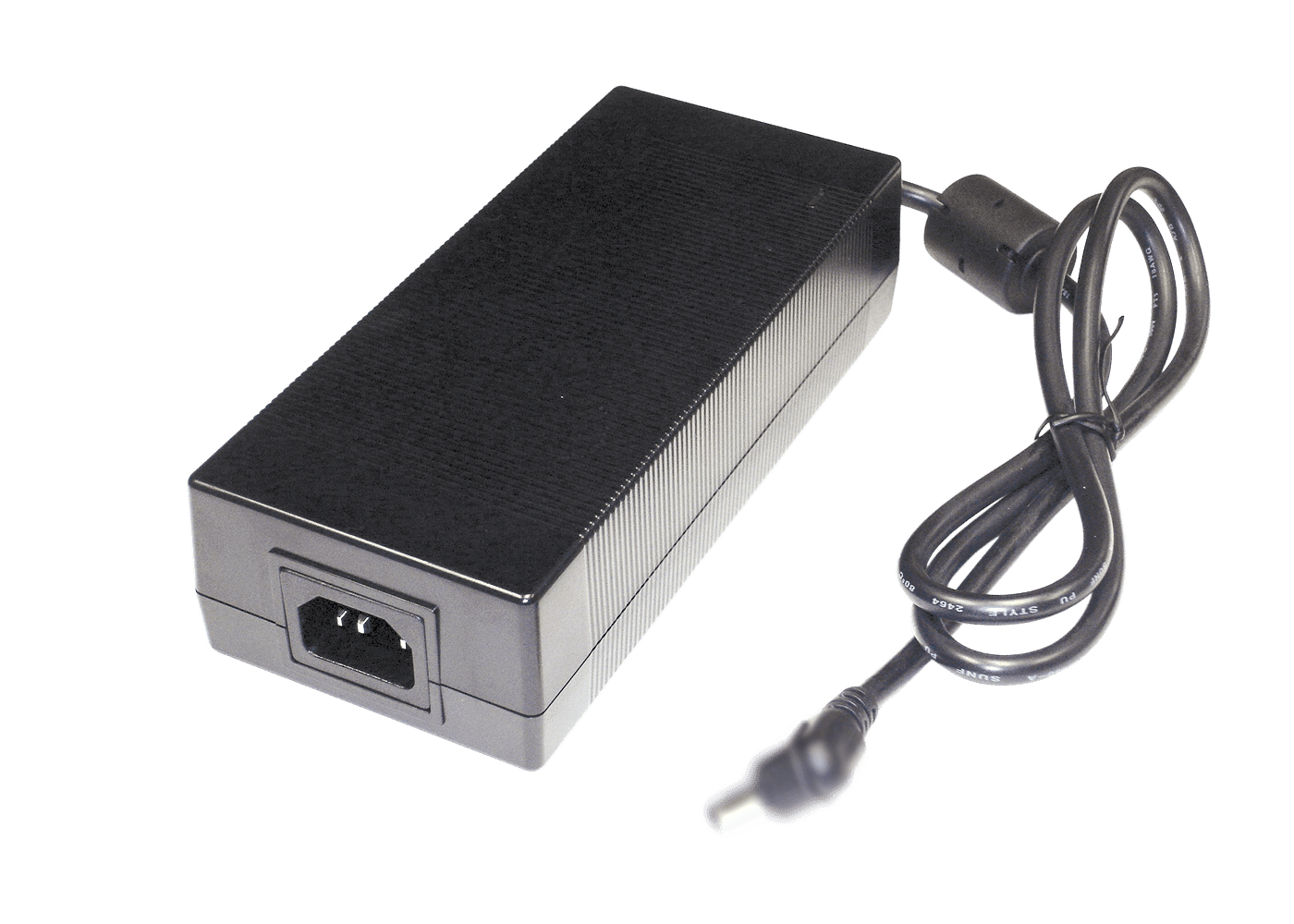

The Phihong USA PSA120U-240L6 is a 120W AC/DC desktop adapter designed for international use. It delivers a stable 24V output with a 5A current capacity, suitable for various commercial ITE applications.
This adapter features an IEC 320-C14 input connector and a barrel plug output connector with positive center polarization. It operates within a temperature range of 0°C to 40°C and complies with Level VI efficiency standards, ensuring energy savings. The unit consumes a maximum of 150mW at no load.
With dimensions of 152.0mm x 73.0mm x 37.0mm, it is designed as a Class I desktop unit. The PSA120U-240L6 has obtained CE, cULus, and GS approvals, indicating its compliance with international safety and performance standards. The power cord is sold separately.
The PSA120U-240L6 adapter provides an output voltage of 24V and an output current of 5A.
The PSA120U-240L6 adapter uses an IEC 320-C14 input connector.
The dimensions of the PSA120U-240L6 adapter are 152.0mm x 73.0mm x 37.0mm.
The operating temperature range for the PSA120U-240L6 adapter is 0°C to 40°C.
The PSA120U-240L6 adapter is RoHS3 Compliant.
