| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

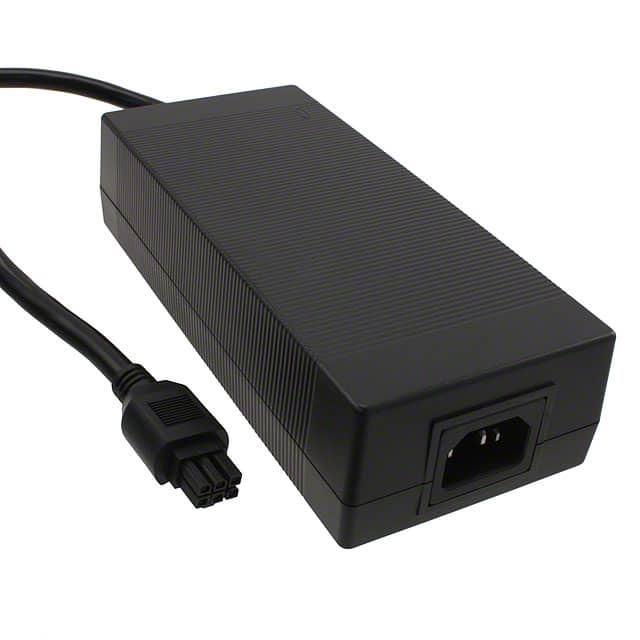

The Phihong USA PSA120U-120V is a 120W AC/DC desktop adapter designed for international use. It delivers a stable 12V output with a 10A current rating, suitable for various commercial ITE applications.
This adapter meets Level V efficiency standards and operates within a temperature range of 0°C to 40°C. It features an IEC 320-C14 input connector and a rectangular 6-position output connector. The device has a low no-load power consumption of 500mW maximum.
With dimensions of 174.0mm x 77.0mm x 43.0mm, it is designed as a Class I desktop unit. The input type requires a cord, which is sold separately, and has a specified cord length of 39.4 inches (1.00m).
Compliance includes CE and cULus approvals. The RoHS status is RoHS3 Compliant, Moisture Sensitivity Level is 1, and REACH status is Unaffected.
The PSA120U-120V provides a 12V output voltage and a 10A current.
The adapter uses an IEC 320-C14 input connector.
The operating temperature range is 0°C to 40°C.
The power rating is 120W.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
