| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Weight | |
| Width |

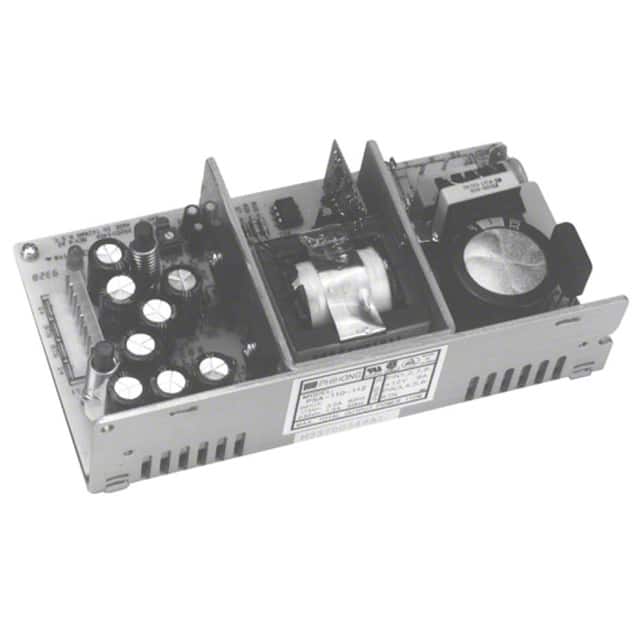

The Phihong USA PSA110-115 is an open-frame AC/DC converter designed for industrial applications. It delivers a 110W output power with a single 15V output at 7.3A.
This converter operates with a universal AC input voltage range of 90-264VAC and a frequency of 47-63Hz. Key electrical specifications include an efficiency of 70% typical at full load, 16ms hold-up time, and a switching frequency of 50KHz. It is equipped with overvoltage and overcurrent protection, including short circuit protection, and features auto-restart.
The mechanical dimensions are 172.7mm in length, 93.5mm in width, and 43.6mm in height, with a weight of 0.72kg. The operating temperature range is from 0°C to 50°C, and it has a calculated MTBF greater than 100,000 hours at full load and 25°C.
Compliance includes CE, CSA, TUV, and UR approvals, with EMI compliance to FCC Class B and EN55022 B standards. It features an integral EMI filter and a low-profile design. The unit utilizes Molex connectors for AC (09-50-3051) and DC (09-50-3081) connections. Mounting is via chassis mount.
The PSA110-115 has a single output voltage of +15V.
The maximum output current for the PSA110-115 is 7.3A.
The PSA110-115 has a power rating of 110W.
The PSA110-115 accepts a universal input voltage range of 90 to 264 VAC.
The operating temperature range for the PSA110-115 is 0°C to 50°C.
The dimensions of the PSA110-115 are 172.7mm (Length) x 93.5mm (Width) x 43.6mm (Height).
