| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Weight | |
| Width |

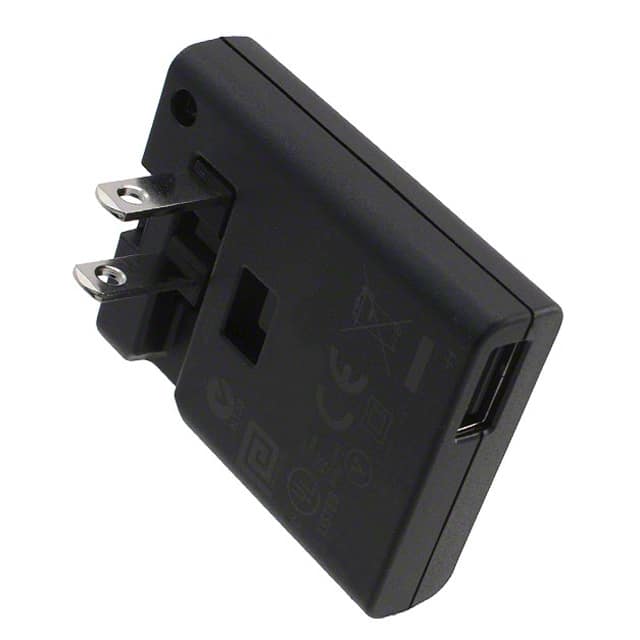

The Phihong USA PSA10F-050Q(S) is a versatile 10-watt AC/DC wall adapter designed for various personal electronics and networking equipment. It delivers a stable 5V output at up to 2A, featuring a USB A receptacle for easy connectivity.
This adapter meets Level VI efficiency requirements and includes features like folding blades for portability and interchangeable AC clips (sold separately). Its compact dimensions of 60mm x 47mm x 15mm make it suitable for space-constrained applications. The adapter operates within a wide input voltage range of 90-264V AC and maintains low no-load power consumption.
Key specifications include a maximum output power of 10W, a current limit of 2.5A, and protections for over-voltage, short-circuit, and over-temperature. The operating temperature range is 0°C to 40°C. Safety approvals include CE and cULus, making it suitable for ITE commercial applications.
The AC input voltage range is 90 to 264 VAC.
Fixed output voltage of 5V with maximum output current of 2A.
Operating temperature range is 0°C to 40°C.
Over voltage protection (6.3V max), current limit (2.5A with auto-restart), short circuit protection (continuous withstand), and over temperature protection (auto shutdown).
DOE Level VI and CoC Tier 1 efficiency.
Output connector is a USB A receptacle.
