| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

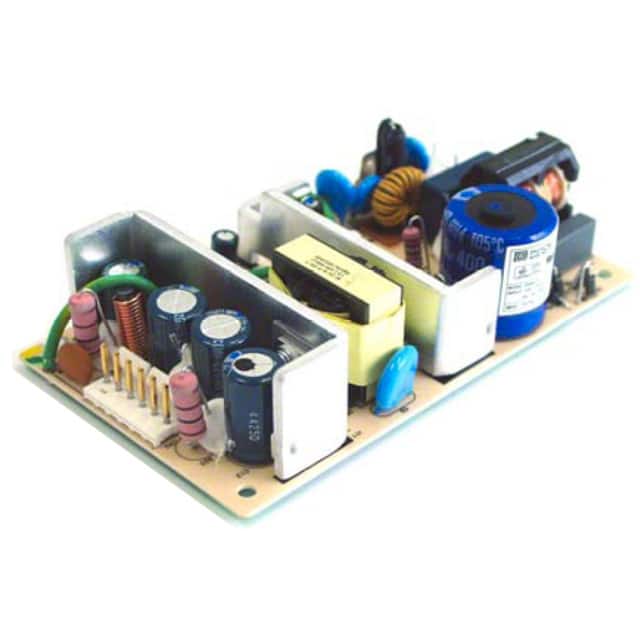

This Phihong USA PSA075-050 is a 75 Watt low-cost, open-frame AC/DC power supply designed for single output applications. It operates with a universal input voltage range of 90 to 264V AC and features a 5V DC output capable of delivering up to 11A, for a maximum power of 55W under forced air conditions.
The power supply meets Class B conducted and radiated EMI standards and includes over-voltage and short-circuit protection with auto-restart. Its mechanical characteristics include dimensions of 5 inches in length, 3 inches in width, and 1.3 inches in height, making it suitable for 1U height requirements. The operating temperature range is from 0°C to 50°C.
Applications for this power supply include tape/disk drive systems, peripherals, POS terminals, routers, internet servers, and networking equipment. Safety approvals include CE (Low Voltage Directive), cUL/US, and TUV.
90 to 264V AC.
5V at 11A.
0°C to 50°C.
Yes, the output can be shorted permanently without damage with auto restart.
65% at maximum load, 120VAC.
127.0mm x 76.2mm x 33.1mm.
Chassis mount open frame.
