| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Insulation Resistance | |
| Length | |
| Load | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Weight | |
| Width |

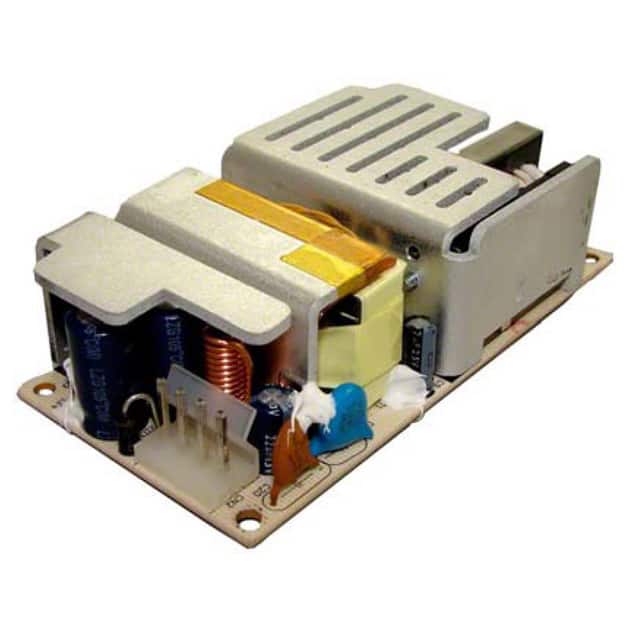

The Phihong USA PSA065-120M is a 45W open-frame AC/DC power supply designed for medical equipment, gaming, and touch screen display applications. It features a compact 2" x 4" footprint and a low-profile design suitable for 1U applications.
This single-output converter operates with a universal input voltage range of 90 to 264V AC and provides a stable +12V DC output at up to 3.75A. Key electrical specifications include 80% typical efficiency, ±2% line and load regulation, and low leakage current. Safety approvals include cUL/UL 60601-1, IEC 60601-1, and CE (Low Voltage Directive).
Mechanical characteristics include dimensions of 101.6mm (4.0in) length, 50.8mm (2.0in) width, and 30.6mm (1.2in) height, with a weight of 160g. The operating temperature range is 0 to 50°C. The unit is chassis mounted and designed for open-frame integration into larger systems.
90 to 264V AC.
12V DC at 3.75A.
0°C to 50°C.
Chassis mount, open frame.
80% typical at full load.
Over-voltage protection at 48V, over-current auto-restart, input fusing.
101.6mm x 50.8mm x 30.6mm.
