| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Halogen Free | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Weight | |
| Width |

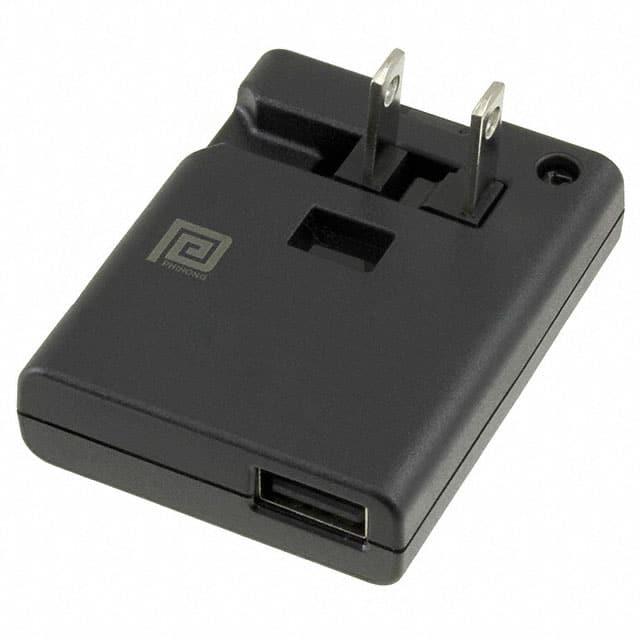

The Phihong USA PSA05F-050QAL6D is a compact AC/DC wall mount adapter designed for various applications. It delivers a stable 5V DC output at a maximum current of 1A, providing a total power of 5W. This adapter meets US DoE Level VI and EU Ecodesign/ErP Lot 7 efficiency standards, ensuring energy savings.
The adapter features a USB A receptacle for output connectivity and a fixed NEMA 1-15P input plug, designed for North American regions. Its dimensions are 60.6mm x 47.6mm x 15.5mm, making it suitable for space-constrained designs. The unit operates within a wide AC input voltage range of 90 to 264VAC and a frequency of 47 to 63Hz.
Safety and compliance are addressed with cULus and IEC 62368-1 certifications. It also meets EMI emission standards such as FCC Part 15 Class B and EN 55032 Class B. The adapter includes over-voltage, short-circuit, and over-current protection mechanisms for reliable operation. It is designed with folding blades and offers constant current for battery charging applications.
5.0V.
Wall Mount (Class II) with USB A receptacle output.
0°C to +45°C.
90 to 264VAC at 47 to 63Hz.
US DoE Level VI and CoC Tier 1, with average efficiency at least 73.6% at 115VAC and 75.0% at 230VAC.
Over-voltage protection at 6.5VDC max, over-current protection with auto restart at 2A max, and continuous short circuit protection.
60.6mm x 47.6mm x 15.5mm and 38.5g.
