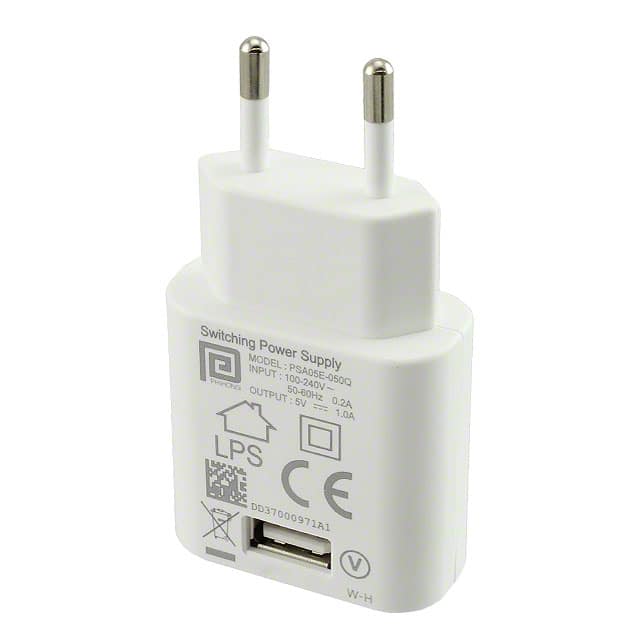

PSA05E-050QW The Phihong USA PSA05E-050QW is a 5W AC/DC wall mount adapter with a 5V output and 1A current. It meets Level V efficiency standards.
Mfr Part #:

PSA05E-050QW

Mfr Name: Phihong USA
Phihong USA
The Phihong USA PSA05E-050QW is a 5W AC/DC wall mount adapter with a 5V output and 1A current. It meets Level V efficiency standards.
Stock on Request

PSA05E-050QW Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Form
Height
Input Connector
Input Type
Length
No Load Power Consumption
Operating Temperature
Output Connector
Power (Watts)
Region Utilized
Voltage
Width
View Similar Products (0)

PSA05E-050QW Description

Short technical summary and product information.

The Phihong USA PSA05E-050QW is an AC/DC wall mount adapter designed for ITE commercial applications. It provides a stable 5V output at 1A, delivering a total of 5W of power.



This adapter features a fixed blade input and a USB A receptacle output, with a compact wall mount (Class II) form factor. It operates within a temperature range of 0°C to 40°C and boasts a low no-load power consumption of 30mW maximum. The efficiency is rated at Level V.



With dimensions of 21.0mm x 43.0mm x 60.2mm, the PSA05E-050QW is suitable for space-constrained designs. It is compliant with CE standards.

PSA05E-050QW Quick Information

Product Type: AC DC Desktop, Wall Adapter
Canonical Name: AC/DC Wall Mount Adapter
Subcategory: AC DC Desktop, Wall Adapter

PSA05E-050QW Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PSA05E-050QW Features

  • 5V output voltage at 1A current.
  • 5W total power output.
  • Level V efficiency rating.
  • Compact wall mount (Class II) form factor.
  • USB A receptacle output connector.

PSA05E-050QW Applications

  • Powers commercial information technology equipment safely.
  • Supplies USB peripherals in office settings.
  • Provides dedicated power for European markets.
  • Supports desktop electronics requiring stable voltage.
  • Ideal for retail displays and POS systems.

PSA05E-050QW FAQs

5 frequently asked questions generated from this part’s specifications.
What is the output voltage and current of the PSA05E-050QW?

It provides a nominal 5V output at 1A, delivering 5W of power.

What type of input connector does this adapter use?

The unit uses a CEE 7/16 fixed blade input connector designed for European regions.

What is the operating temperature range for this power adapter?

The adapter is rated for an operating temperature between 0°C and 40°C.

Does this adapter meet Level V energy efficiency standards?

Yes, the PSA05E-050QW complies with Level V efficiency requirements.

What is the maximum no-load power consumption of this unit?

The maximum no-load power consumption is specified as 30mW.
