| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Case Color | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Halogen Free | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Power | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Standards | |
| Voltage | |
| Width |

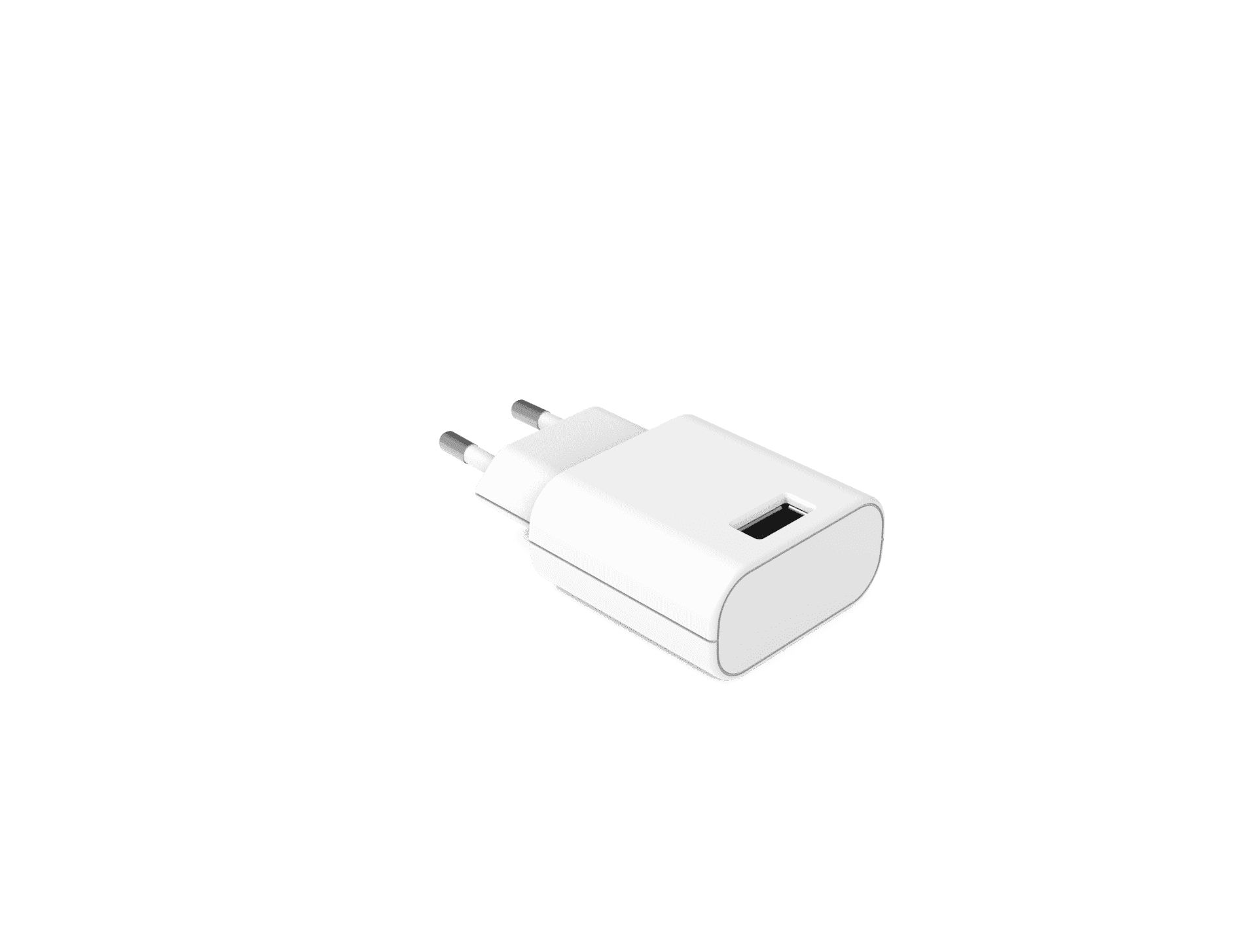

The Phihong USA PSA05E-050QL6WS-H is a compact 5W AC/DC wall mount adapter designed for various electronic applications. It provides a stable 5.0V DC output with a maximum current of 1.0A, delivering a total output power of 5.0W. The adapter features a fixed blade input connector suitable for European regions and a standard USB-A receptacle for output.
This adapter operates within a wide AC input voltage range of 90 to 264VAC and a frequency of 47 to 63Hz. It meets efficiency standards, with an average efficiency of ≥ 73.62% at 115VAC and ≥ 73.77% at 230VAC. Key protection features include over-voltage protection up to 7.0V, auto-restart for short circuits, and over-current protection at 1.5A.
Designed for environmental considerations, it operates between 0°C and +40°C and complies with Ecodesign/ErP Lot 7 (EU) 2019/1782. The adapter also adheres to safety standards such as IEC 62368-1 and meets EMI emissions requirements of EN 55032/CISPR 32 Class B. Its dimensions are 78.9mm x 43.0mm x 21.0mm, making it a low-profile solution for powering smart phones, PDAs, personal electronics, and digital cameras.
The adapter provides a regulated 5.0V DC output.
It accepts an AC input voltage range of 90 to 264VAC.
The unit is rated for operation between 0°C and +40°C.
Yes, it achieves Level VI and CoC Tier 2 efficiency ratings.
It includes over-voltage, over-current, and short-circuit protection with auto-restart.
