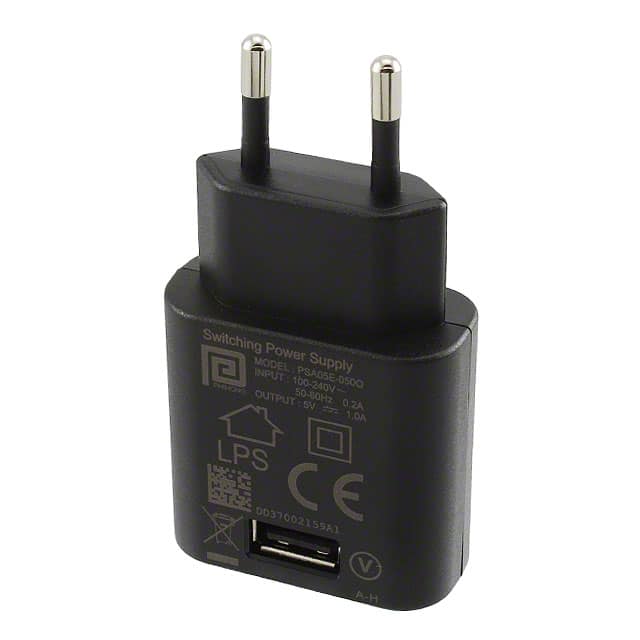

PSA05E-050QA-H The Phihong PSA05E-050QA-H is a 5W AC/DC wall mount adapter providing a 5V output. It features a USB A receptacle output and a fixed blade input for European regions.
Mfr Part #:

PSA05E-050QA-H

Mfr Name: Phihong USA
Phihong USA
The Phihong PSA05E-050QA-H is a 5W AC/DC wall mount adapter providing a 5V output. It features a USB A receptacle output and a fixed blade input for European regions.
Stock on Request

PSA05E-050QA-H Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Approval Agency
Automotive Grade
Current
Efficiency
Form
Height
Industrial Grade
Input Connector
Input Type
Length
Medical Grade
Military Grade
No Load Power Consumption
Operating Temperature
Output Connector
Power (Watts)
Region Utilized
SVHC Present
Standard Number
Voltage
Weight
Width
View Similar Products (0)

PSA05E-050QA-H Description

Short technical summary and product information.

The Phihong PSA05E-050QA-H is a compact AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 5V output with a maximum current of 1A, totaling 5W of power. This adapter is suitable for use in Europe, featuring a fixed blade input connector.



The adapter is designed with a USB A receptacle output connector, making it convenient for powering various devices. It operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 30mW maximum. The unit adheres to safety standards including IEC 60950-1 and IEC 62368-1.



With dimensions of 21.0mm x 43.0mm x 60.2mm and a weight of approximately 79.8g, it offers a compact form factor. The adapter is classified as Class II and meets RoHS3 compliance requirements.

PSA05E-050QA-H Quick Information

Product Type: AC/DC Adapter
Canonical Name: Phihong PSA05E-050QA-H AC/DC 5W 5V Compact Wall Mount Adapter, EU Fixed Blade with USB Output Connector, Black
Subcategory: AC/DC Adapter

PSA05E-050QA-H Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PSA05E-050QA-H Features

  • 5W AC/DC wall mount adapter
  • 5V output voltage
  • 1A maximum output current
  • USB A receptacle output connector
  • EU fixed blade input

PSA05E-050QA-H Applications

  • Powers USB-powered ITE equipment
  • Charging portable consumer devices
  • Operates with European wall outlets
  • Designed for commercial IT applications
  • Compact adapter for space-constrained setups

PSA05E-050QA-H FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the PSA05E-050QA-H?

5V DC.

What is the output current rating?

1A.

What output power does this adapter provide?

5W.

What is the operating temperature range?

0°C to 40°C.

What package form factor is the PSA05E-050QA-H?

Wall mount (Class II).

What efficiency level does this adapter meet?

Level V.

For which region is this adapter designed?

Europe, with a CEE 7/16 input plug.
