| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

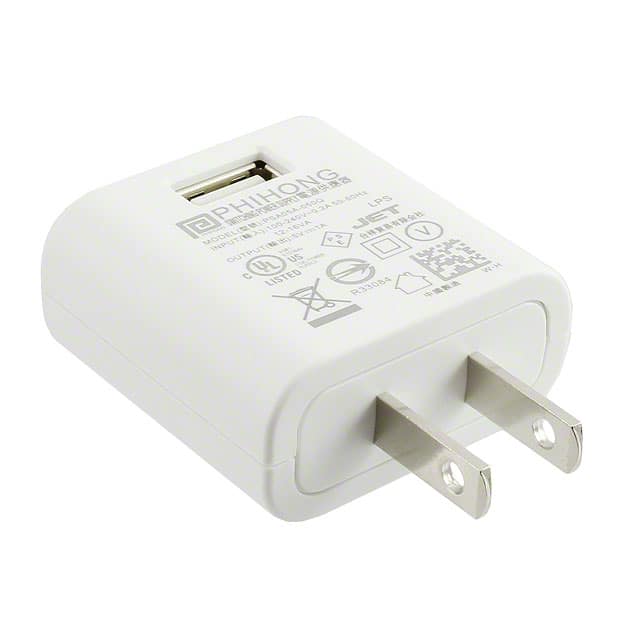

This Phihong USA PSA05A-050QW is a compact AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 5VDC output with a maximum current of 1A, providing a total power output of 5W. The adapter features a NEMA 1-15P input connector for North American outlets and a standard USB A receptacle for output.
With an input voltage range of 100-240 VAC, this adapter is suitable for global use. It operates efficiently, meeting Level V efficiency standards, and consumes minimal power when not under load, with a maximum of 30mW. The operating temperature range is from 0°C to 40°C.
The physical dimensions are 21.0mm in length, 43.0mm in width, and 42.0mm in height. Its wall mount (Class II) form factor makes it convenient for direct wall socket connection. The adapter is approved by cULus for safety compliance.
The output voltage is 5 VDC and the output current is 1 A.
The input voltage range is 100-240 VAC.
It meets Level V efficiency.
It has a USB A receptacle output connector.
The operating temperature range is 0°C to 40°C.
It is cULus approved.
