| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Case Color | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Halogen Free | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Standards | |
| Voltage | |
| Width |

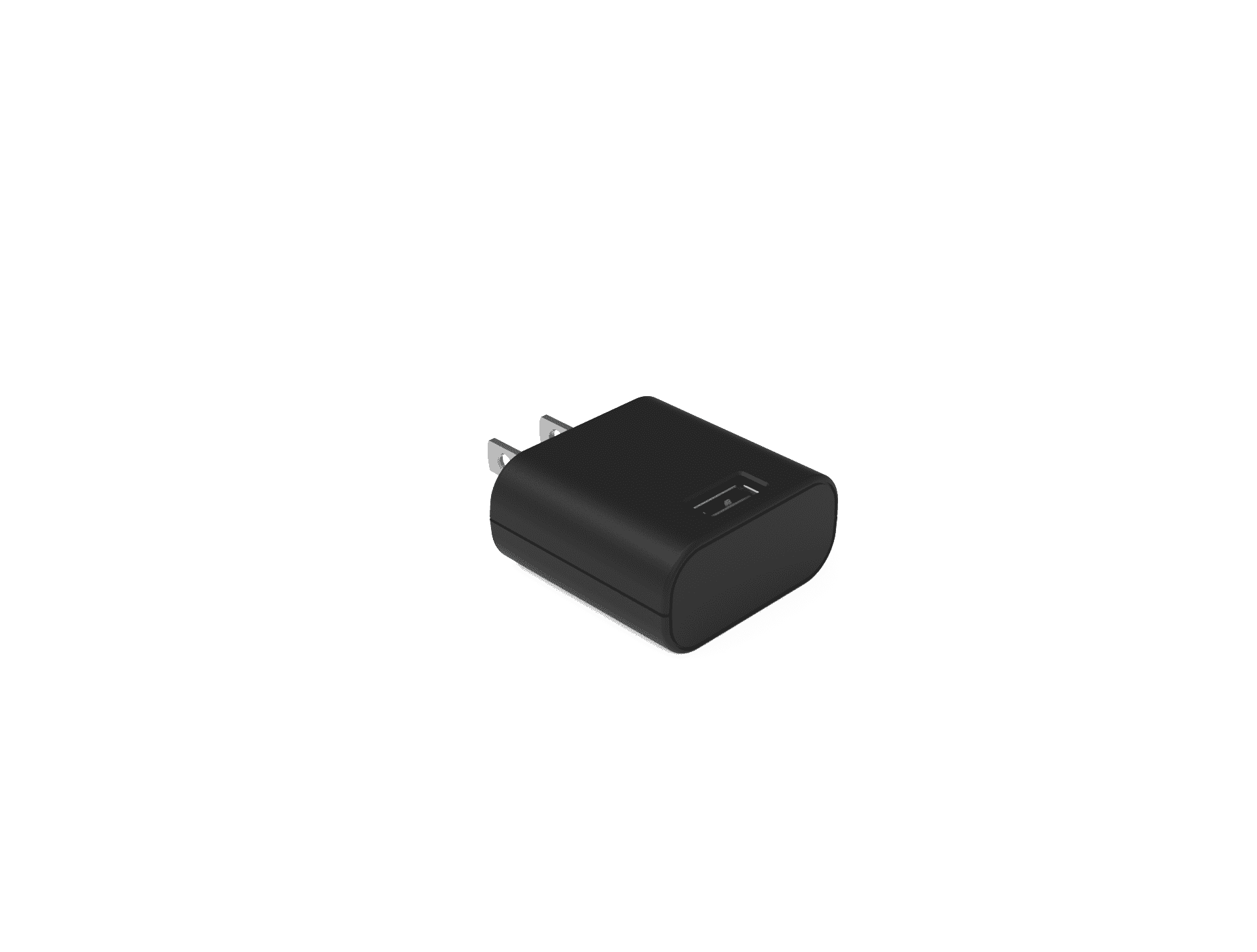

The Phihong USA PSA05A-050QL6-H is a compact AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 5V output at a maximum current of 1A, providing a total output power of 5W. The adapter features a NEMA 1-15P fixed blade input connector and a USB A receptacle for output.
This adapter meets US DoE Level VI efficiency standards and operates within a wide AC input voltage range of 90 to 264VAC. It is built with essential protections including over-voltage and short-circuit with auto-restart. The operating temperature range is from 0°C to 40°C.
Key features include a low profile, low cost design, and halogen-free construction. Compliance includes cULus 62368-1 and BSMI standards, with EMI emissions meeting FCC Part 15 Class B and EN 55032/CISPR 32 Class B. It is suitable for powering smart phones, PDAs, personal electronics, and digital cameras.
The adapter provides a 5.0V DC output voltage at a maximum current of 1.0A.
The maximum output power for the PSA05A-050QL6-H is 5.0W.
The adapter accepts an AC input voltage range from 90 to 264VAC.
Yes, it complies with US DoE Level VI efficiency standards.
The adapter can operate in temperatures ranging from 0°C to +40°C.
It features a USB A receptacle for the output connection.
Yes, the adapter is Halogen Free.
