Mfr Part #:

PS9Z-6RM6

Mfr Name: Idec

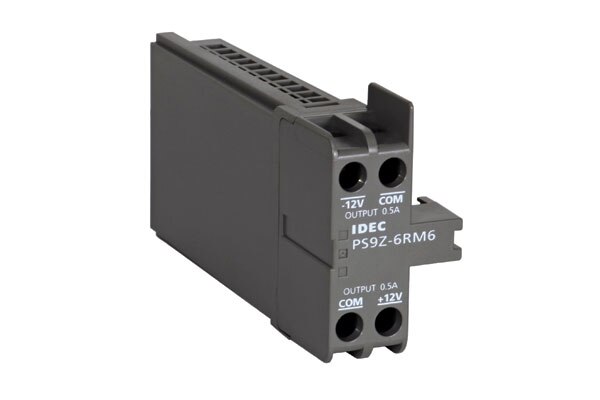

The IDEC PS9Z-6RM6 is a high-performance power supply from the PS6R series, designed for reliability and efficiency. It features a high output that reduces installation space burden.

Stock on Request

PS9Z-6RM6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	Idec
Efficiency	93%
Industrial Grade	Yes
Mounting Type	DIN Rail, Panel Mount

View Similar Products (0)

PS9Z-6RM6 Description

Short technical summary and product information.

The IDEC PS9Z-6RM6 is a high-performance power supply belonging to the PS6R series. It is engineered for reliability and efficiency in demanding applications, offering a high output that minimizes the need for installation space. This model achieves an impressive 93% efficiency, contributing to reduced running costs and energy conservation.

The power supply operates with a rated input voltage of AC 100–240V, with an input voltage range spanning AC 85–264V and DC 110–350V. It incorporates IDEC’s unique SS (Save & Safety) terminals, designed for labor-saving connections with a screw-up structure that eliminates the need to remove screws and speeds up connections with round terminals. The safety aspect is enhanced by a finger protection structure that prevents accidental contact with terminals.

Mounting flexibility is provided with two types of brackets available, supporting both DIN rail mounting and direct mounting on panels. The PS9Z-6RM6 complies with CE marking (LVD, EMCD) and is certified by UL (UL508, ANSI/ISA 12.12.01), c-UL (CSA C22.2 No.107.1, No.213), and TÜV SÜD (EN60950-1, EN50178). It is also compliant with EN61204-3 (DC power supply EMC standard, Class B) and classified by ship standards, certified by ABS and DNV-GL.

PS9Z-6RM6 Quick Information

Product Type: Power Supply

Series: PS6R High-Performance Series

Canonical Name: Idec PS6R High-Performance Series Power Supply

Subcategory: Accessories

PS9Z-6RM6 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PS9Z-6RM6 Features

Achieves 93% high efficiency for reduced costs.
Wide input voltage range: AC 85–264V / DC 110–350V.
Features IDEC's unique Save & Safety terminals.
Supports DIN rail and direct panel mounting.
Compliant with CE, UL, c-UL, and TÜV SÜD standards.

PS9Z-6RM6 Applications

Ideal for industrial automation systems.
Suitable for applications requiring high efficiency.
Designed for reduced installation space requirements.
Used in environments requiring robust certifications.

PS9Z-6RM6 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the efficiency of the IDEC PS9Z-6RM6 power supply?

The IDEC PS9Z-6RM6 power supply achieves 93% high efficiency.

What is the input voltage range for the PS9Z-6RM6?

The input voltage range for the PS9Z-6RM6 is AC 85–264V or DC 110–350V.

What type of terminals does the IDEC PS9Z-6RM6 use?

The terminal section features IDEC’s unique SS (Save & Safety) terminals, which have a screw-up structure for labor-saving connections and a finger protection structure for safety.

How can the IDEC PS9Z-6RM6 power supply be mounted?

Two types of mounting brackets are available, allowing for DIN rail mounting and direct mounting on panels.

What certifications does the PS9Z-6RM6 power supply hold?

The PS9Z-6RM6 complies with CE marking (LVD, EMCD), and is certified by UL (UL508, ANSI/ISA 12.12.01), c-UL (CSA C22.2 No.107.1, No.213), and TÜV SÜD (EN60950-1, EN50178). It is also compliant with EN61204-3 and classified by ship standards (ABS and DNV-GL).
