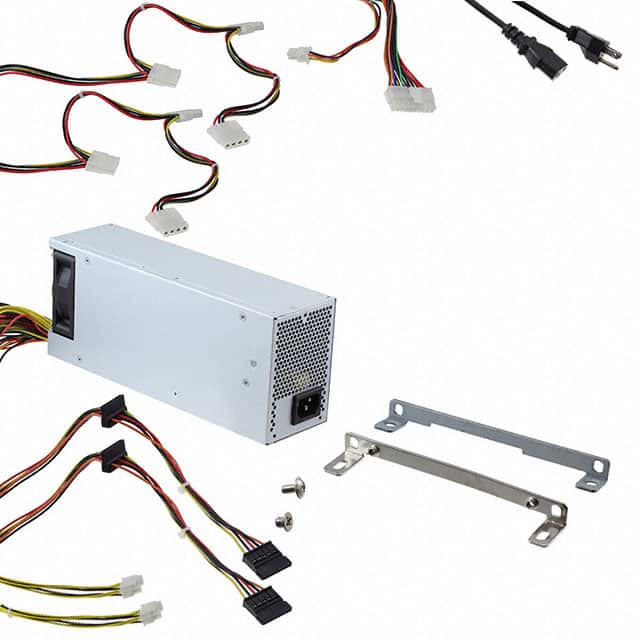

The Advantech Corp PS8-500U2-XE is an AC/DC converter designed for ITE (Commercial) applications. It delivers a robust 500W of output power with an efficiency rating of 82%. The unit accepts a wide input voltage range from 100 to 240 VAC and operates at 50-60Hz.
Key electrical specifications include multiple output voltages and currents, such as +5V@20A, +12V1@16A, and a [email protected] rail, along with a +5Vsb(DC)@3A standby output. The converter features Power Factor Correction (PFC) and is housed in a 2U form factor with chassis mount type.
Designed for reliability, it boasts an MTBF of 100,000 hours at 25°C and operates effectively at 50°C. Safety certifications include CB, CCC, CE, FCC, KC, TUV, and UL, adhering to standards like 60950-1. The operating temperature range is 0°C to 50°C, with storage temperatures from -20°C to 80°C.
The output power is 500W.
The output voltages and currents are +5V@20A, +12V1@16A, +12V2@16A, +12V3@16A, [email protected], and +5Vsb(DC)@3A.
The efficiency is 82%.
The operating temperature range is 0°C to 50°C.
It supports an input voltage range of 100 - 240V.
Yes, it features PFC (Power Factor Correction).
The dimensions are 240.0mm (Length) x 100.0mm (Width) x 70.0mm (Height).
