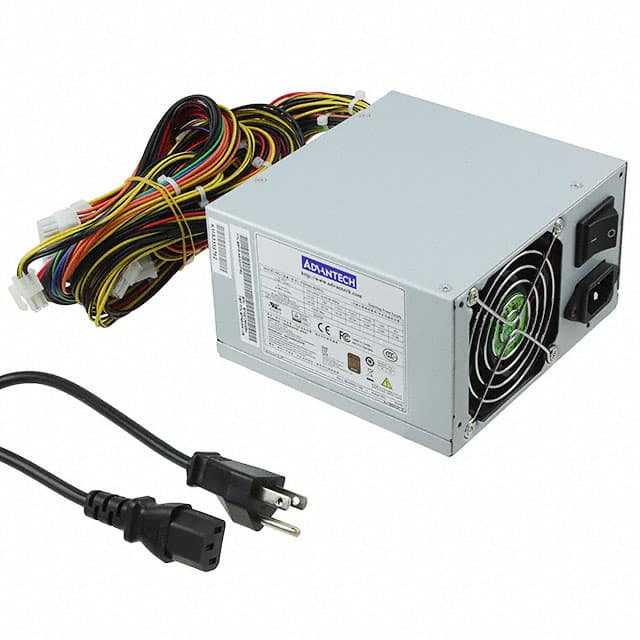

The Advantech Corp PS8-500ATX-ZE is an AC/DC converter with a power rating of 571W. It is designed for chassis mounting and features a standby output. The unit accepts a wide input voltage range of 100-240 VAC at 50-63 Hz and provides multiple output voltages including +5V @ 20A, +3.3V @ 24A, +12V @ 16A, -12V @ 0.5A, -5V @ 0.3A, and +5Vsb @ 3A.
This power supply has dimensions of 86.1mm x 140.0mm x 150.1mm and is suitable for ITE (Commercial) applications. It carries approvals from CB, CCC, TUV, and UL, indicating compliance with various safety standards. The MTBF is rated at 100,000 hours at 25°C.
Environmental compliance includes RoHS3 compliance, MSL 1 Unlimited, and REACH Unaffected status. The PS8-500ATX-ZE is a robust power solution for various commercial electronic systems.
100-240 VAC at 50-63 Hz, with 4-8 A input current.
+3.3V @ 24A, +5V @ 20A, +12V1 @ 16A, +12V2 @ 16A, -12V @ 0.5A, -5V @ 0.3A, and +5Vsb @ 3A.
571W.
The converter measures 150.1 mm x 140.0 mm x 86.1 mm and is chassis mount.
100,000 hours at 25°C.
CB, CCC, TUV, and UL.
Yes, it provides +5Vsb @ 3A.
